article no.: 24235

65.000m³/h 157 Pa used blower, exhaust fan, grp-fan

Ceilote Korrosionstechnik

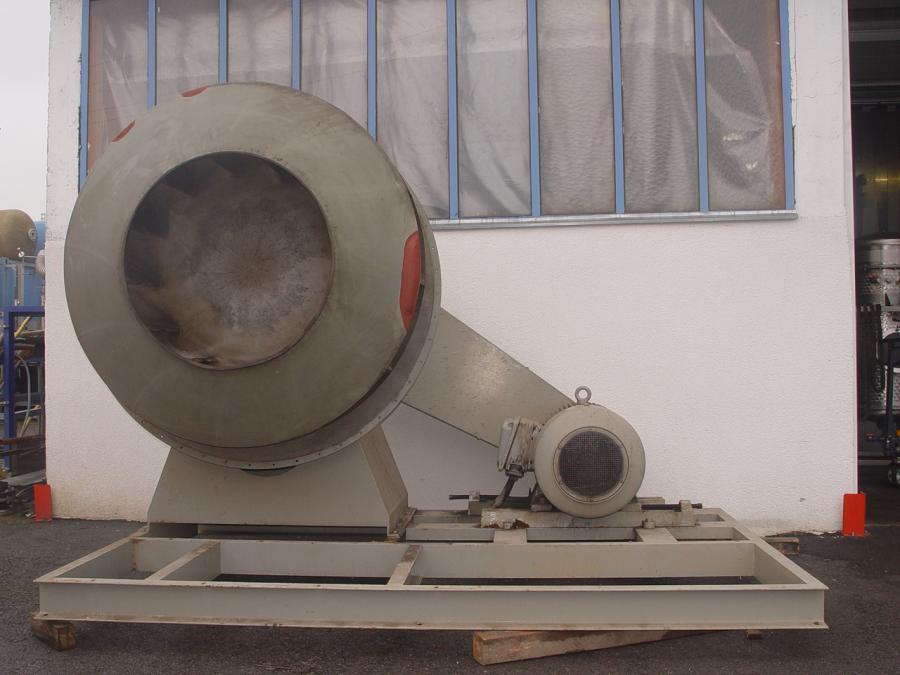

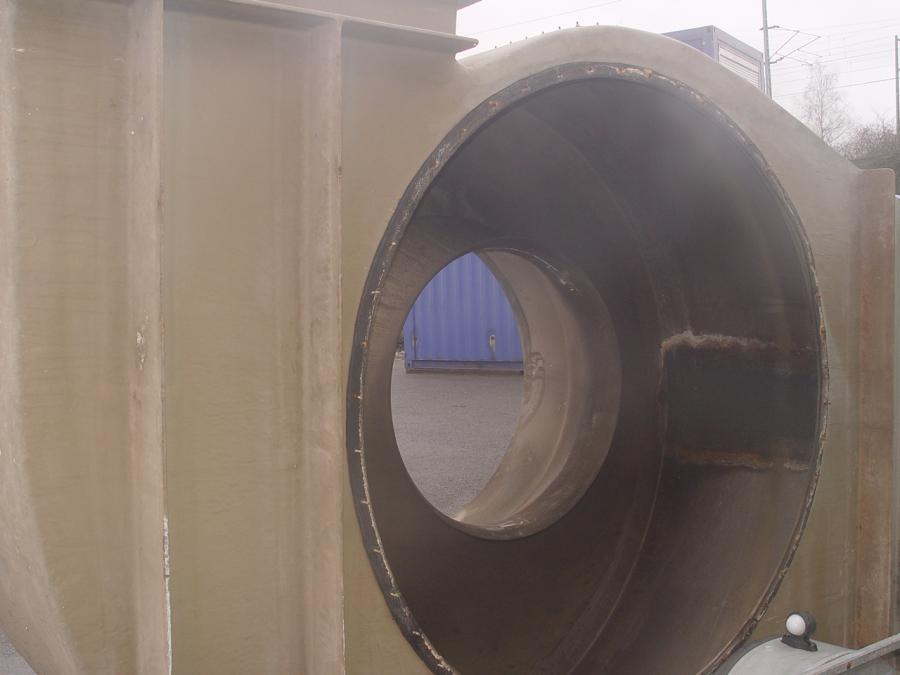

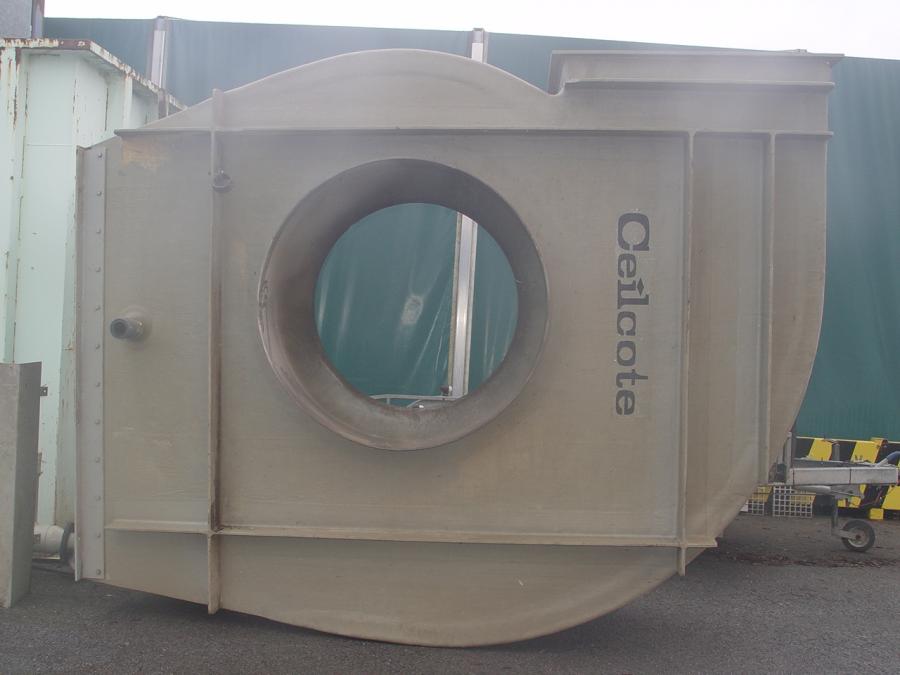

GRP – fan for conveying corrosive or aggressive gases. Due to the size the fan housing is dismantled at the moment.

producer: Ceilote Korrosionstechnik

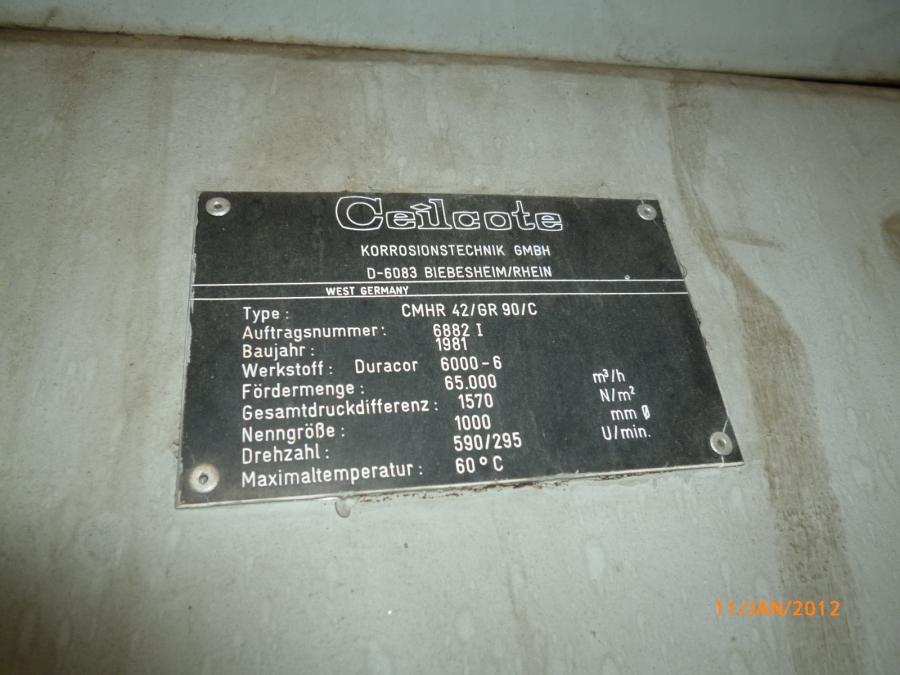

type designation: CMHR 42/GR90/C
condition: used
price 2770 Euro EXW
Volume flow rate 65000 m³/h
Pressure 1570 Pa pressure
Temperature 60 °C max. permissible temperature
Rotations 590 1/min
Connections 1050 mm cross section sucking side
Length 3200 mm
Width 2400 mm
Height 3100 mm
Weight 2500 kg approx.
Material housing made of GRP

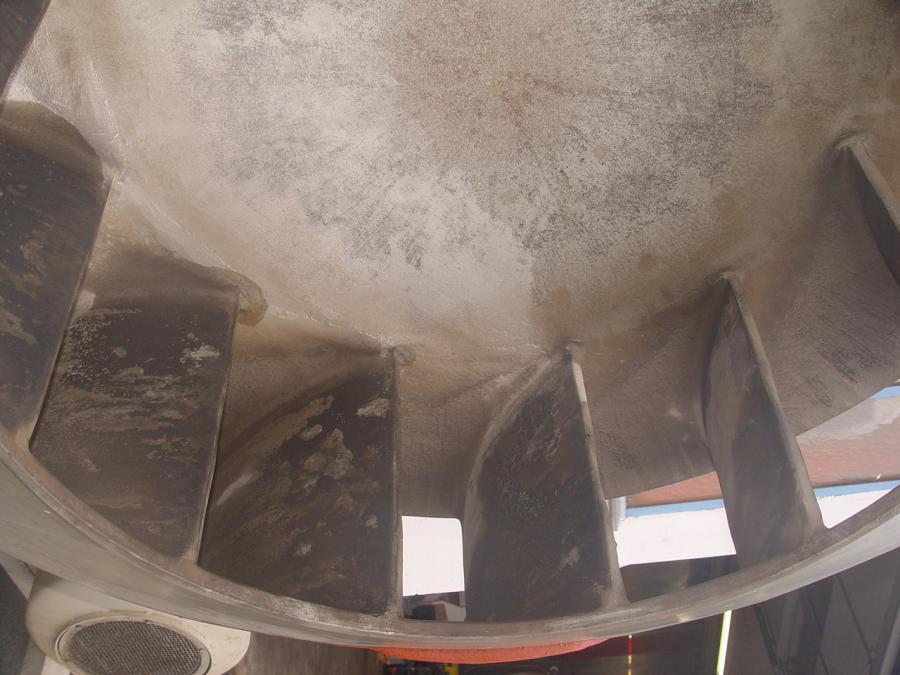

Material fan wheel made of coated steel
Further information drive LOHER type A280MB-V8/4
Power 75 kW drive
