article no.: 29471

1,19 m³ chemical supply system with tank and air operated diaphragma pump, cabinet dosage station

Kinetics

Description

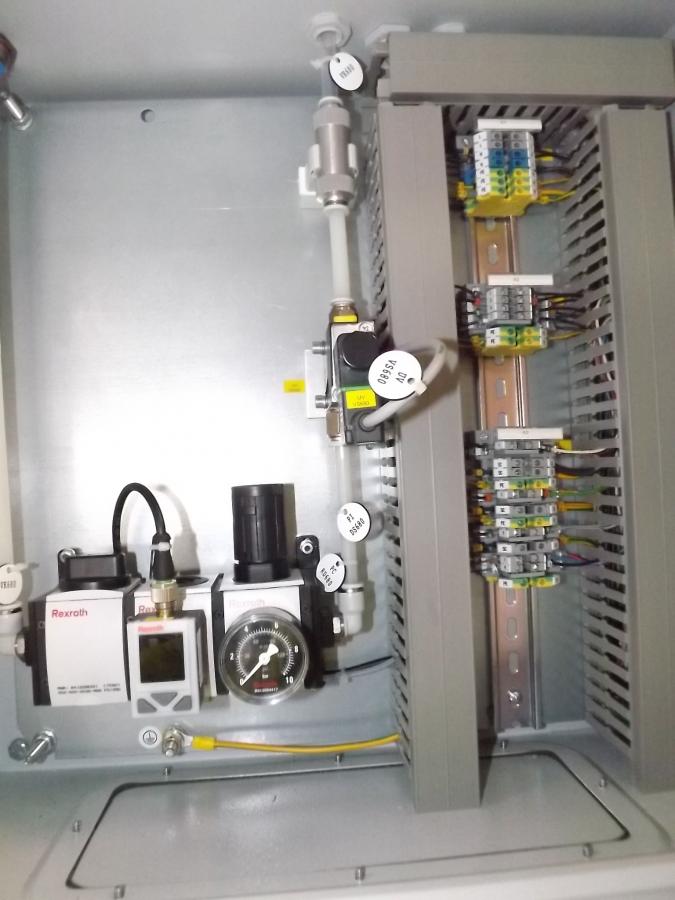

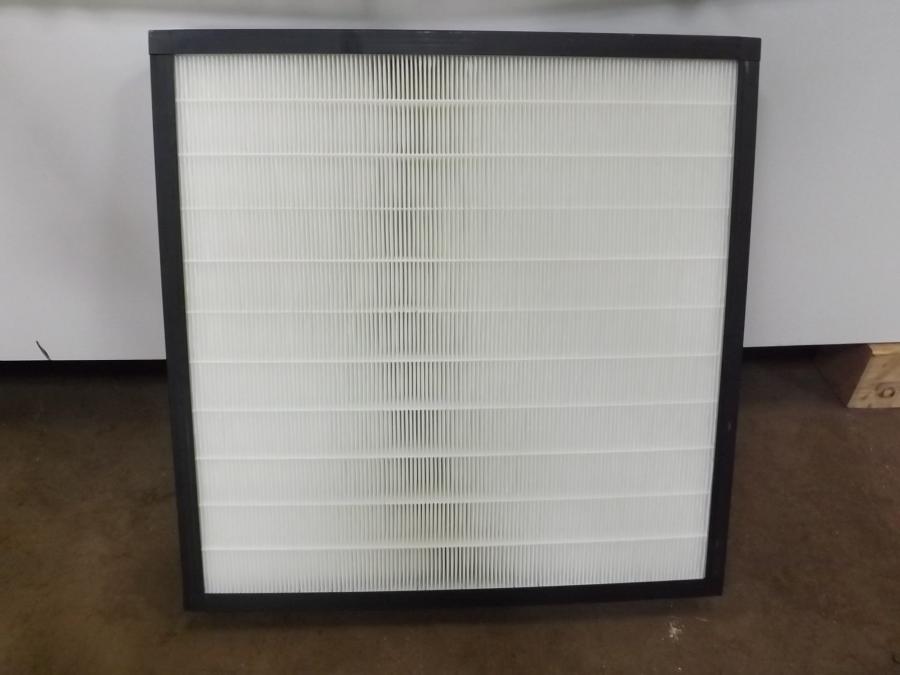

Clean room cabinet for storing or dosing dangerous liquid chemicals. The cabinet is completely closed with a fixed tank, cabinet exhaust air, supply air filter, E-Part Controlsection (compressed air unit) and a collecting pan with a compressed air membrane pump.
The system is of very high quality and can be used for many chemicals.

producer: Kinetics
type designation: Almatec A10TTT
condition: used
Dimensions Length 2000 / width 2000 / height 3400mm total with assembly without stand
Weight 600 kg approx.

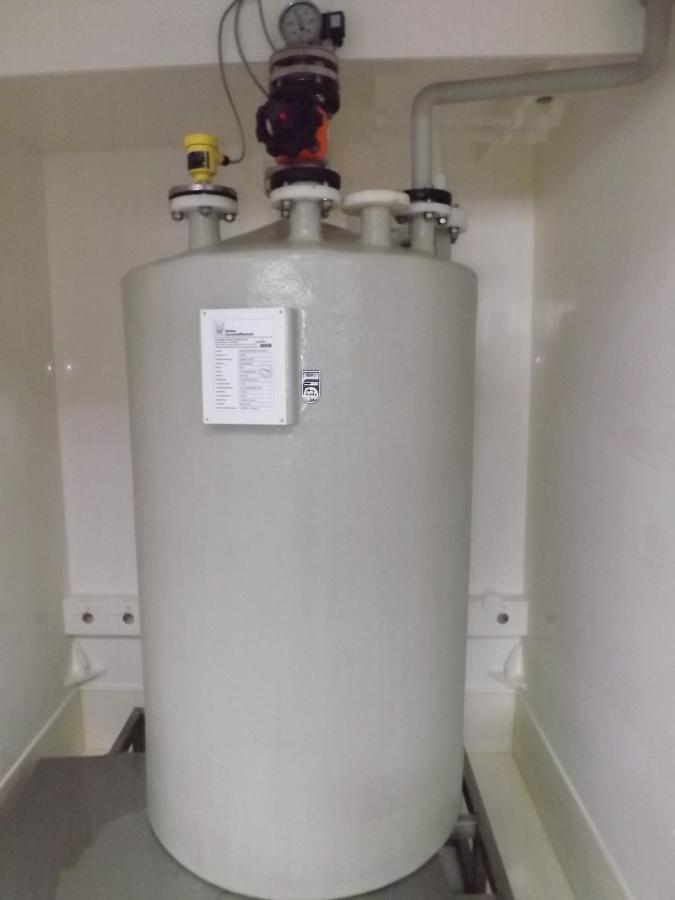

Description – Fixed tank / storage rod on stainless steel frame
Material –
Volume 1.19 m³ Usable volume
Temperature 30 / 40 °C max.operating temperature / when filling

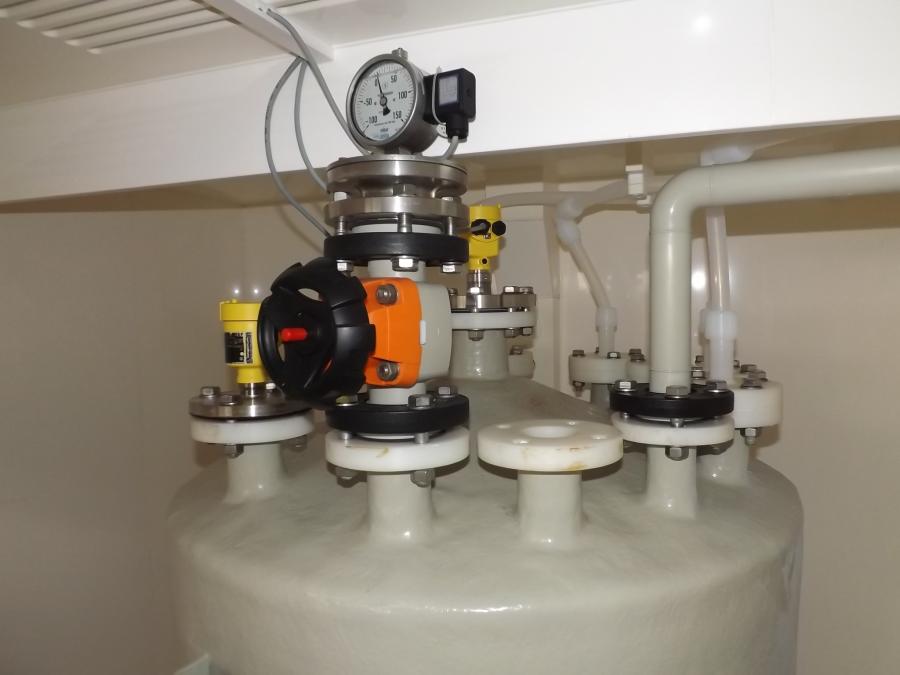

Connections – Overfill protection / level meter / filling and emptying / pressure monitoring with pressure display
Height 1600 mm
Diameter 1000 mm

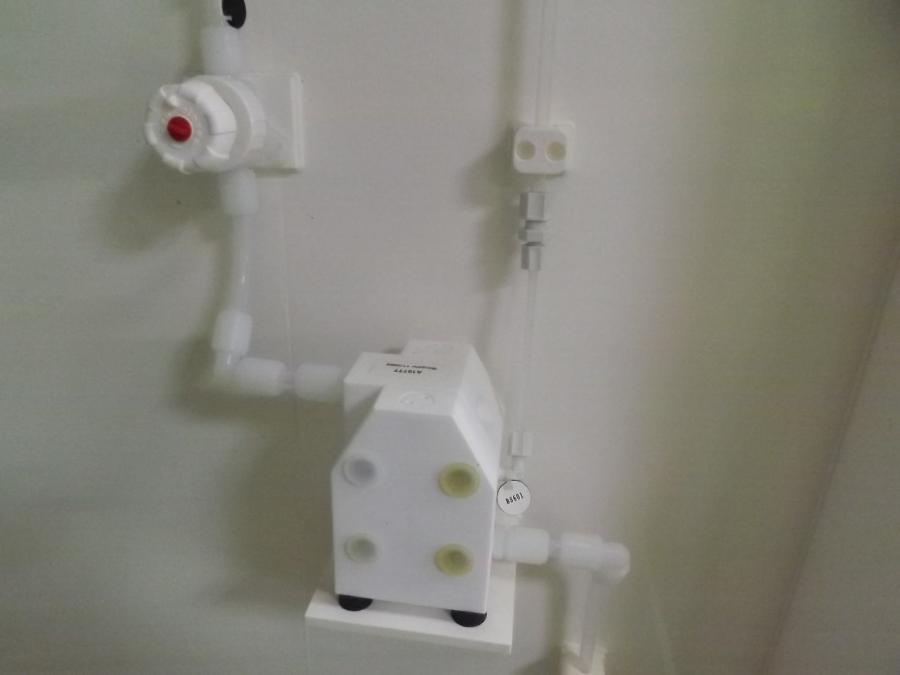

Accessories 1x compressed air diaphragm pump Almatec A10TTT
Accessories Drip pan installed
Further information doors made of PVC

storage of dangerous material
