article no.: 30197

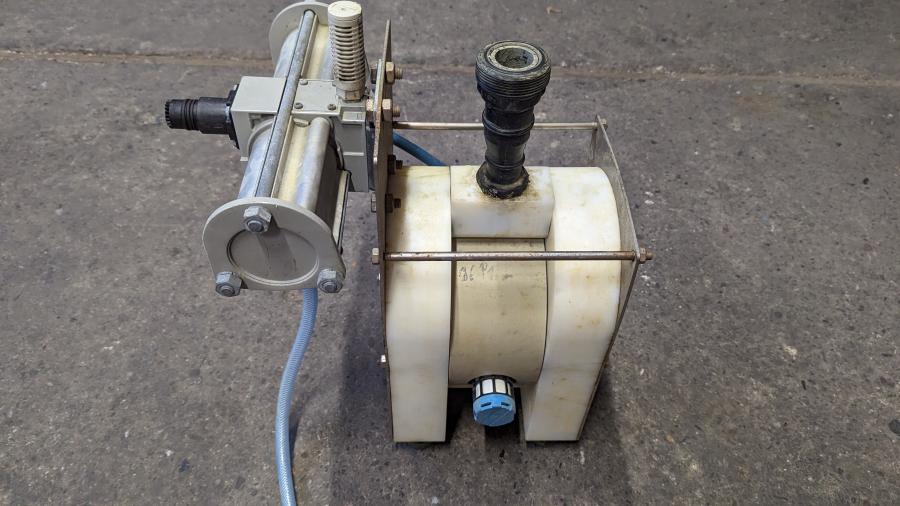

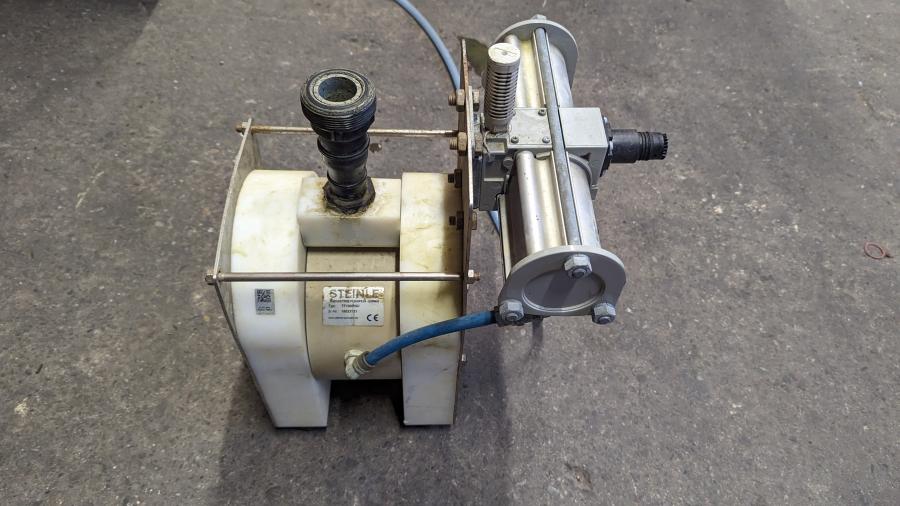

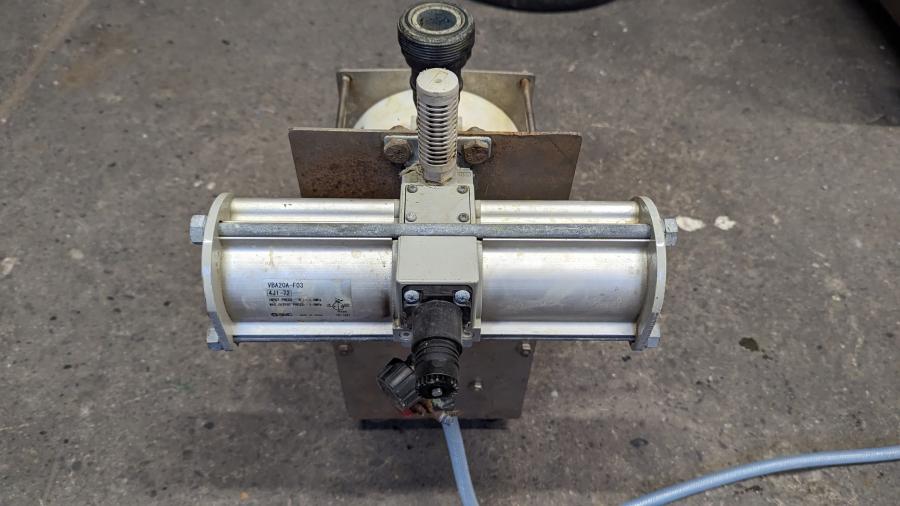

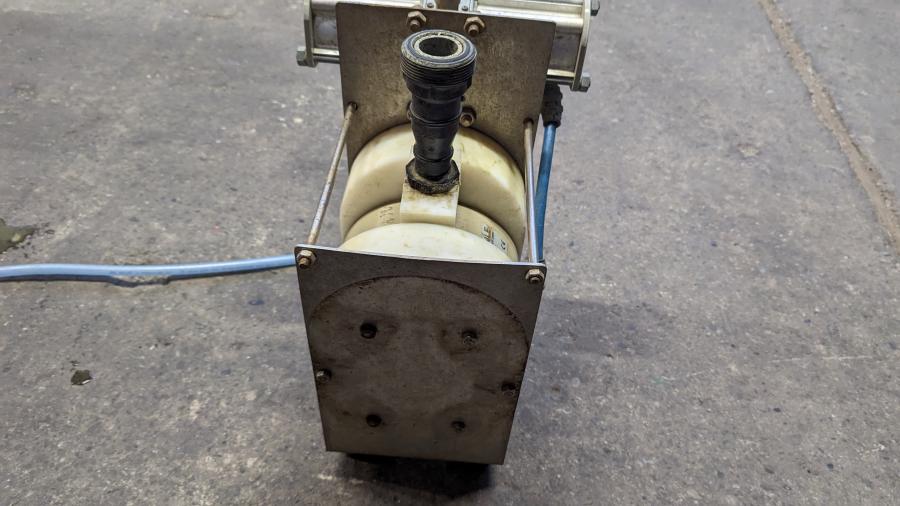

7.5 m³/h used diaphragm pump



Compressed air driven diaphragm pump for conveying of corrosive and aggressiv fluids.

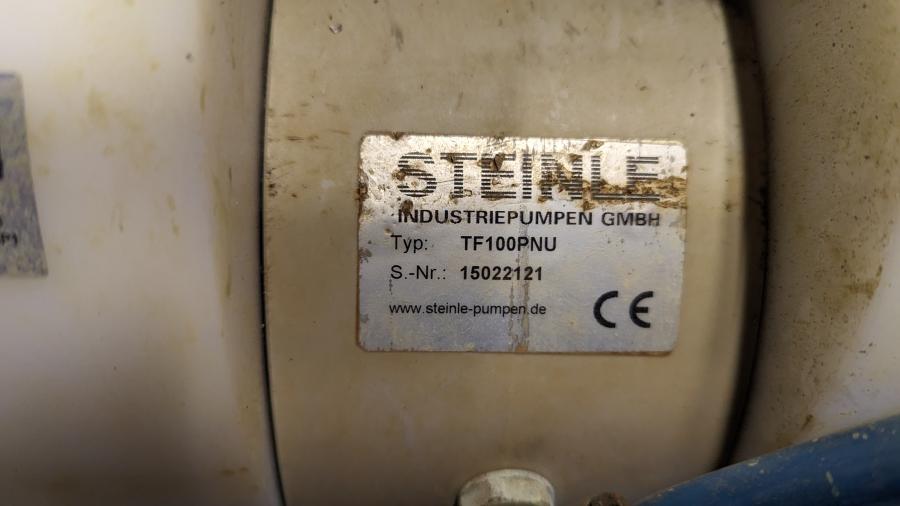

producer: Steinle
type designation: TF100 PNU
condition: used
Delivery rate 7.5 m³/h at max. compressed air flow
Pressure 16 bar at 8bar driving pressure
Connections 1″
Connections 3/8″ compressed air connection inner thread
Weight 15 kg approx.
Material body made of polyethylen
Suction head 3 m dry
Suction head 9 m productfilled
Length 200 mm
Width 376 mm
Height 522 mm
Dimensions max. solid size 6mm

fluid transportation
