article no.: 23635

thermal after-burning unit, post-combustion

Schröter

Description

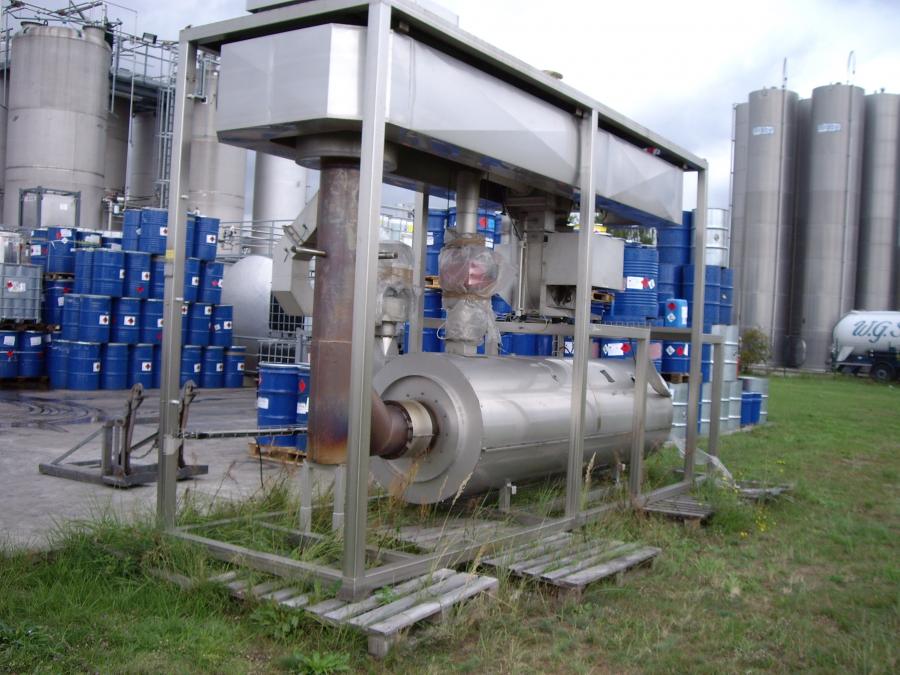

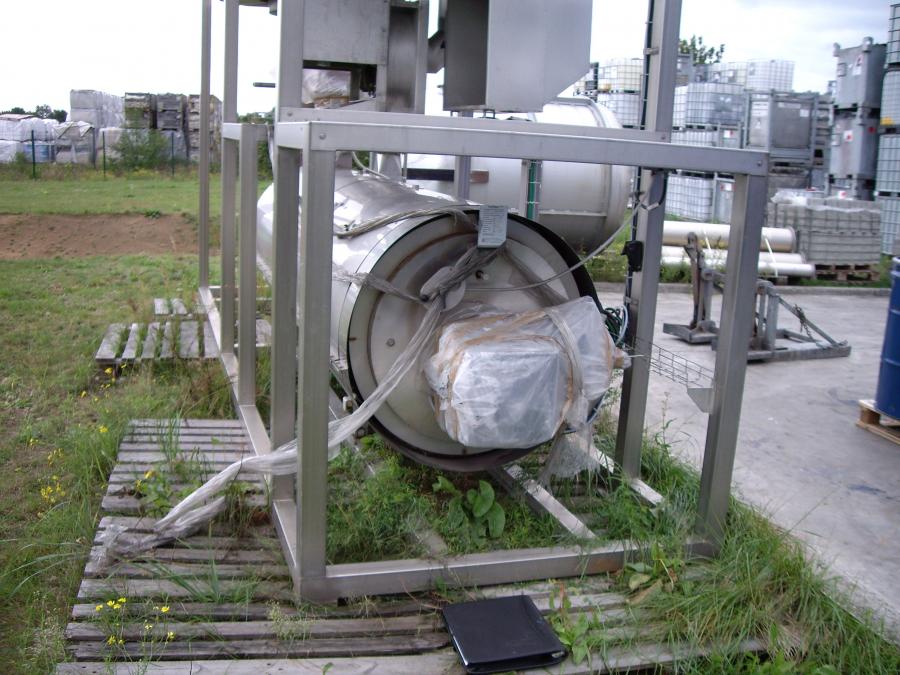

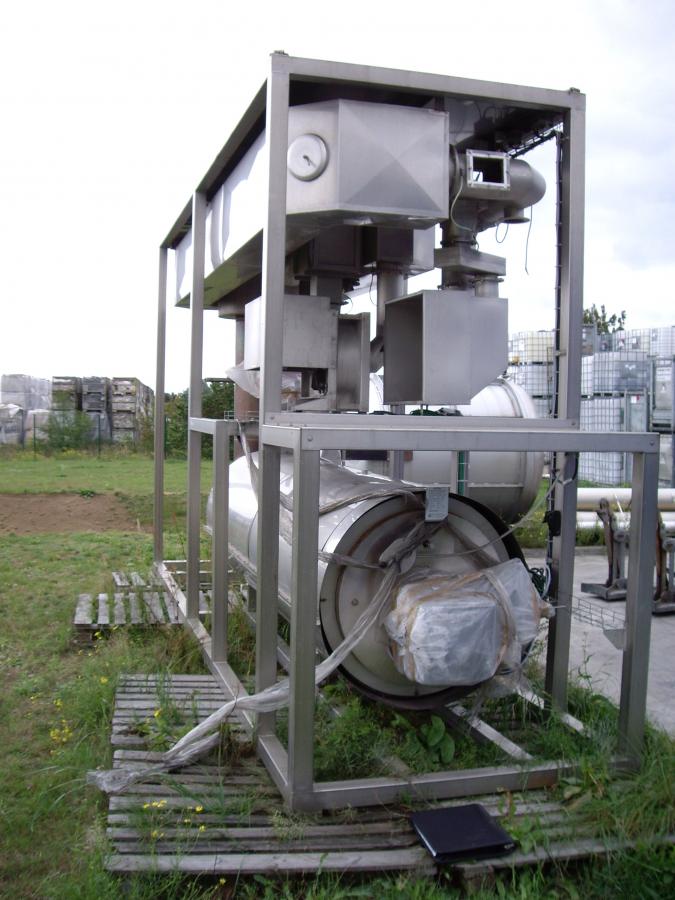

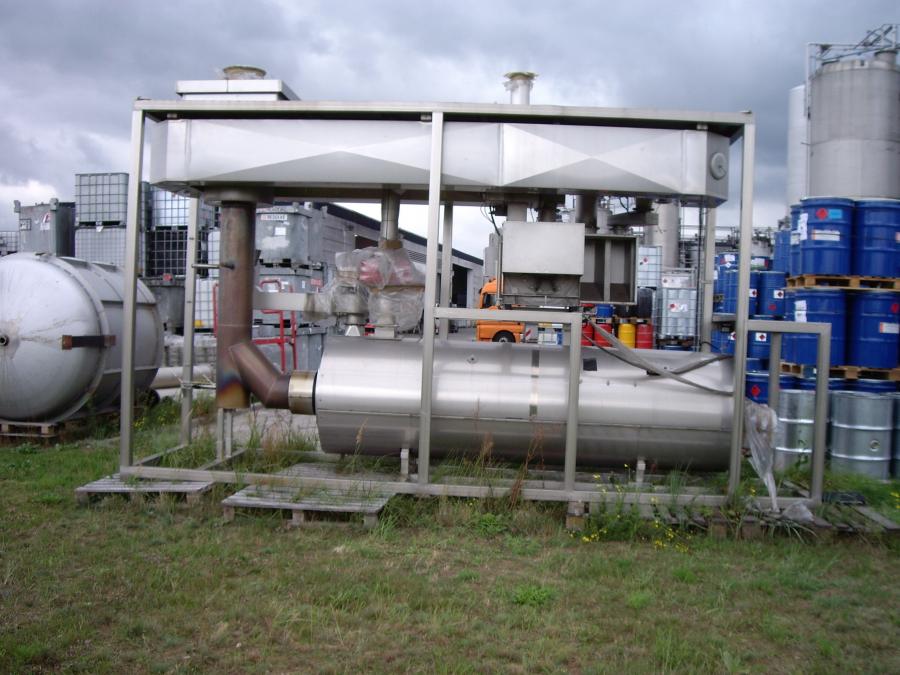

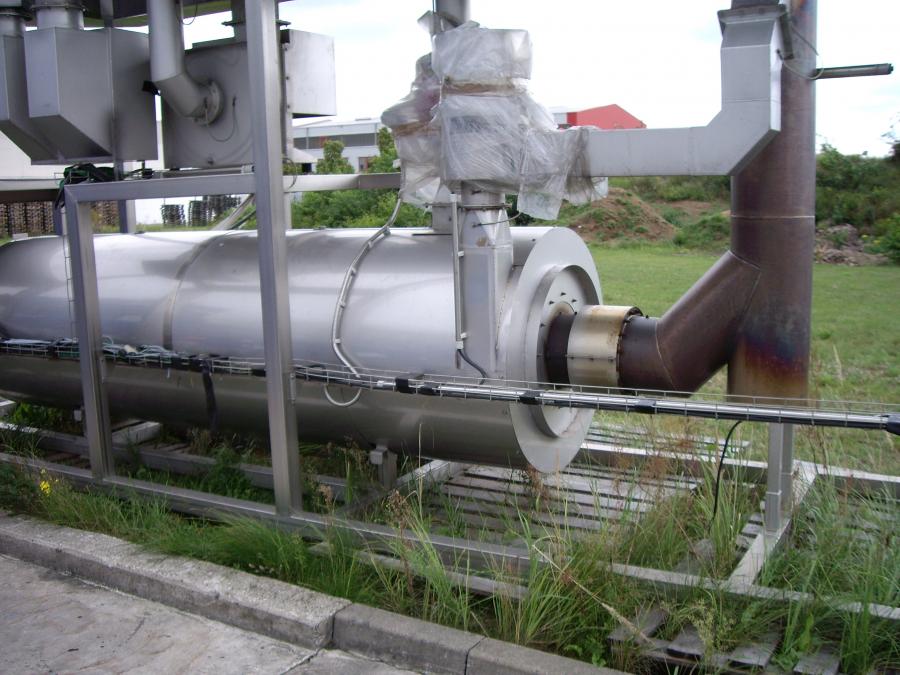

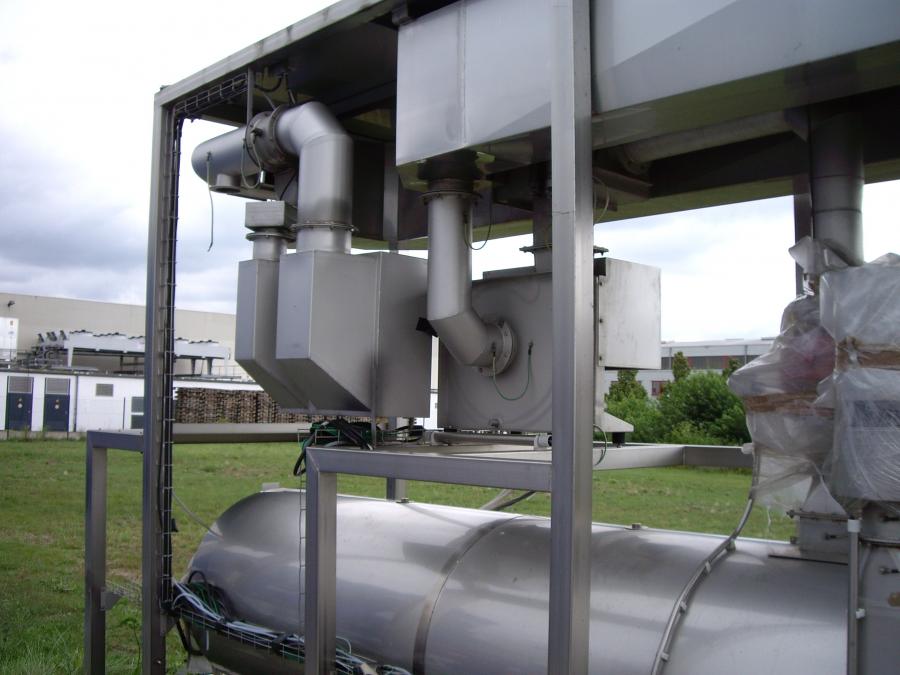

Solvent steam combustion unit with all necessary measurement systems, switch cabinet, redundant measurement and documentation for authorities

producer: Schröter
type designation: Cleenjet TNV-60
condition: used
Material stainless steel
Length 6000 mm
Width 1500 mm
Height 2700 mm
Further information Abluftmenge 600 Nm³/h
Temperature 800 °C combustion chamber temperature
Power 150 kW max. burner capacity
Power 1.5 kW capacity of the ventilator
Further information max. pressure of the ventilator 150 mm wc
Weight 2980 kg

thermical proceeding
