article no.: 26637

-196 °C, 16 bar used heat exchanger, demistor, condensator unit

Honio Italia

Description

Stainless steel heat exhanger for condensating gases with extremly cold colling mediums.

producer: Honio Italia
type designation: E03
condition: used
price 1330 Euro EXW
Dimensions mm length (lying) 2100, width max 800, diameter 600mm
Weight 260 kg
Connections 2x DN80, 2x DN20 cooling side, 1xDN25 condensate connection
Pressure 0.49 bar max. shell pressure
Pressure 16 bar max. tube pressure
Temperature -100 / 40 °C min / max shell temperature
Temperature -196 / 40 °C min / max tube temperature
Volume 130 l shell volume
Volume 16 l tube volume

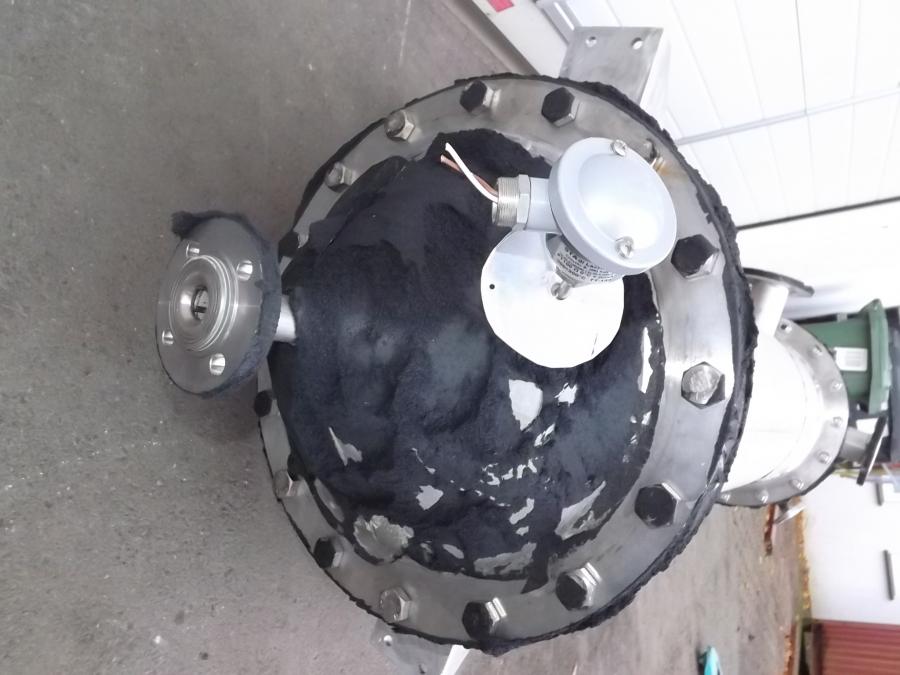

Accessories Pt100 temperature probe
Material 1.4306 stainless steel

thermical proceeding
