article no.: 27401

max. 120 °C, 10 bar used plate heat exchanger

Funke

Description

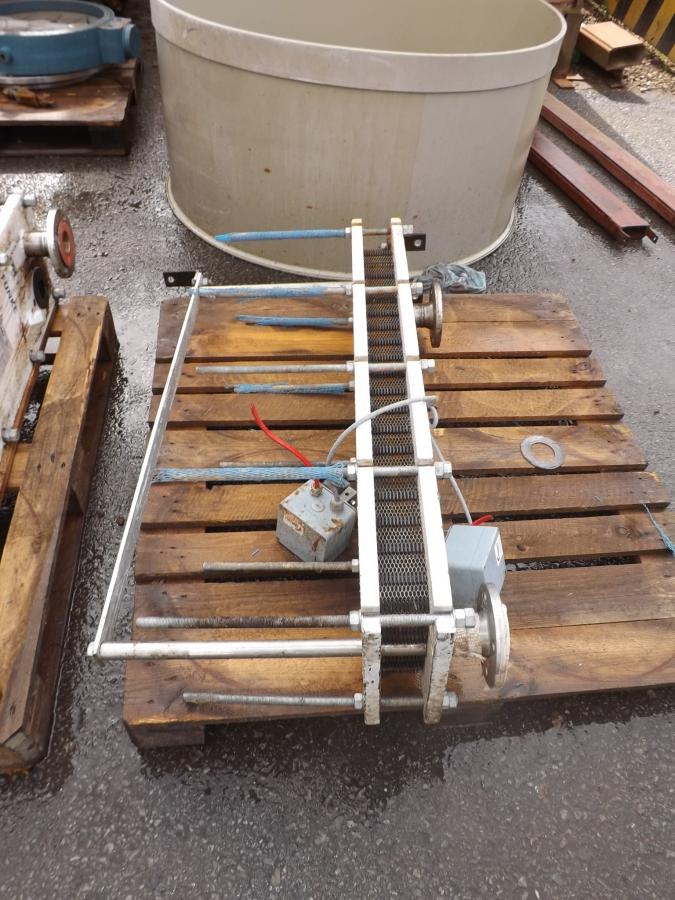

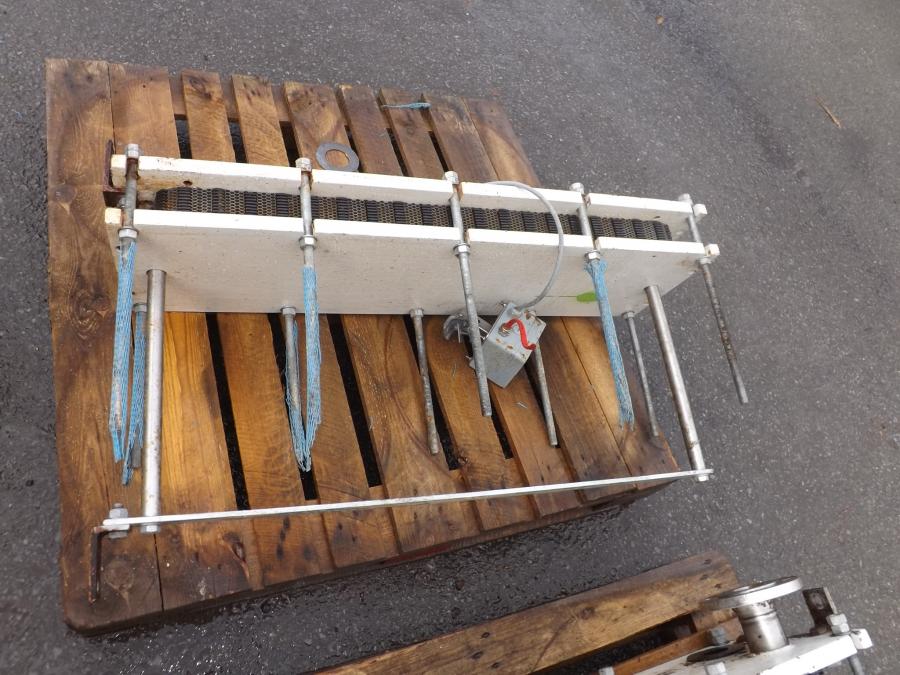

Plate heat exchangers coated with tensioning device made of steel and plate pack of stainless steel

producer: Funke

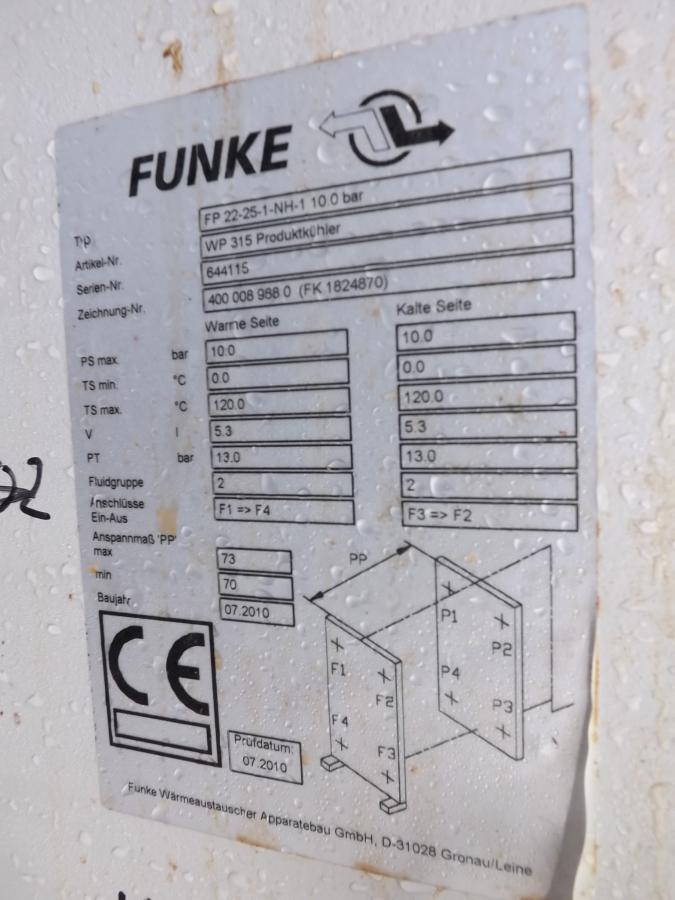

type designation: FP-22-25-1-NH-1 10.0 bar
condition: used
price 240 Euro EXW
Content 5,3 l
Number of plates 25
Connections 4 X DN 50
Pressure 10 bar total
Temperature 0,0 min °C Warm and Cold side
Temperature 120.0 max °C Warm and Cold side
Height 1120 mm
Width 760 mm
Depth 320 mm

thermical proceeding
