article no.: 28057

33 m², 6200 kg used stainless steel spiral heat exchanger

GEA Canzler GmbH

Description

Description

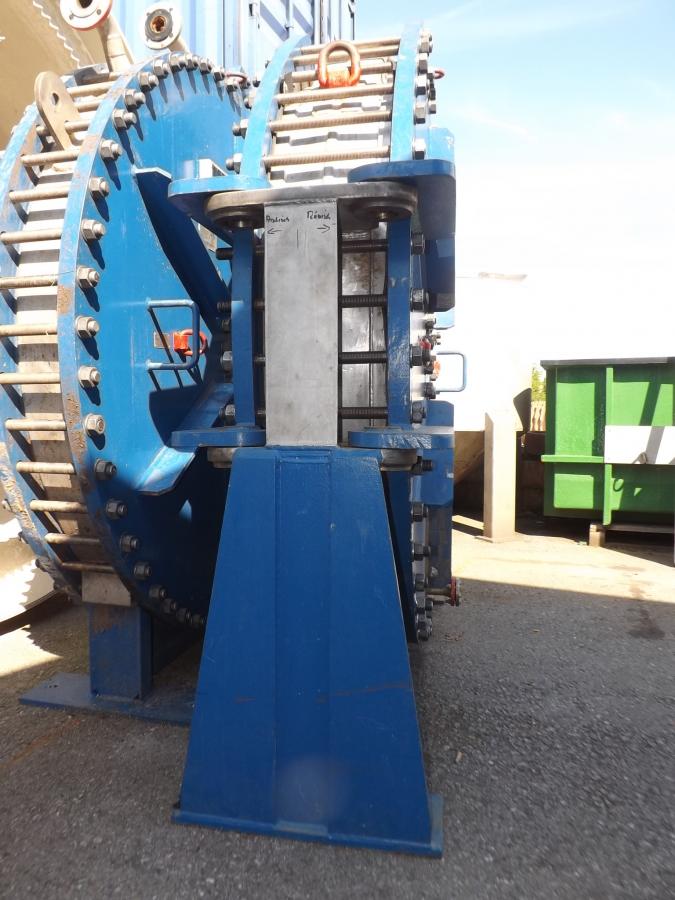

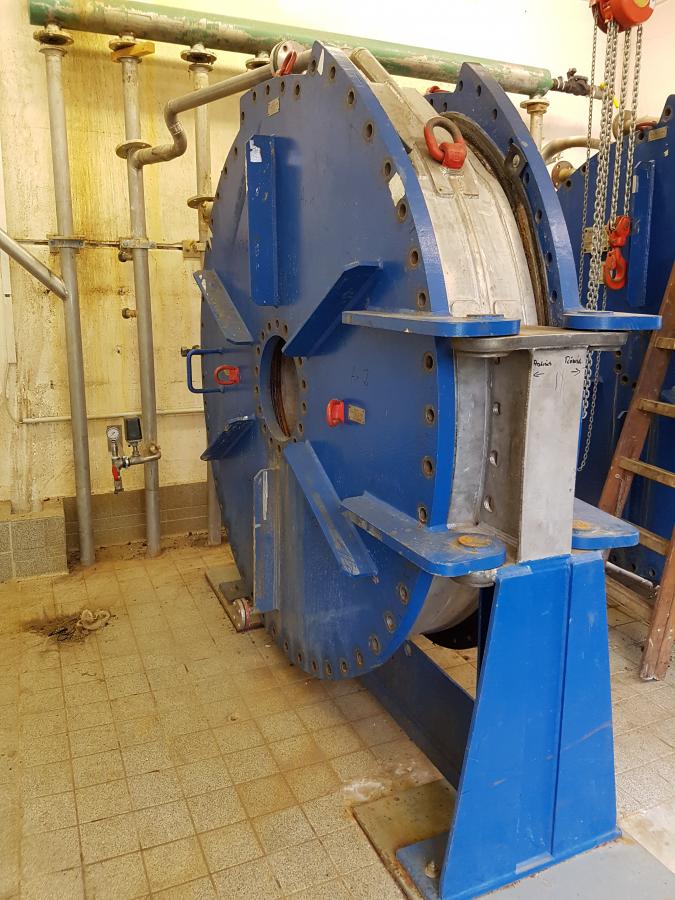

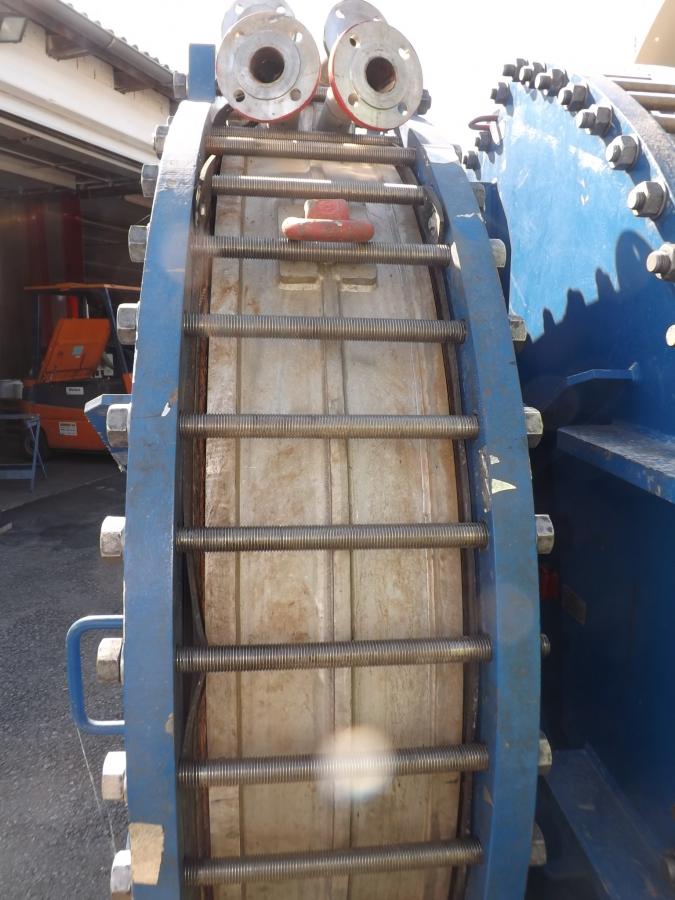

stainless steel spiral heat exchanger

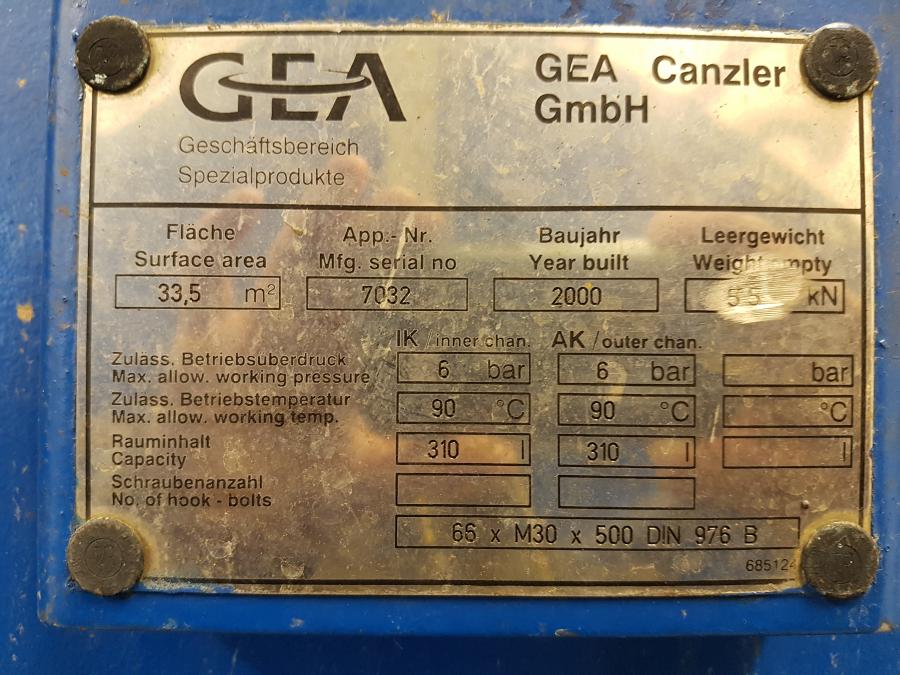

producer: GEA Canzler GmbH
type designation: SL2
condition: used
Content 310 l Chamber A
Content 310 l Chamber B

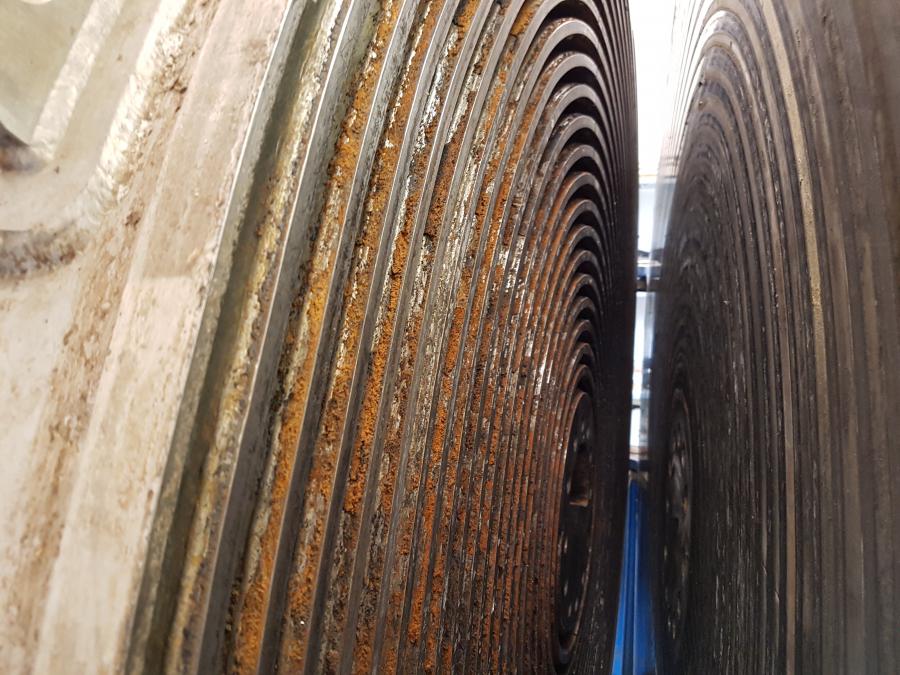

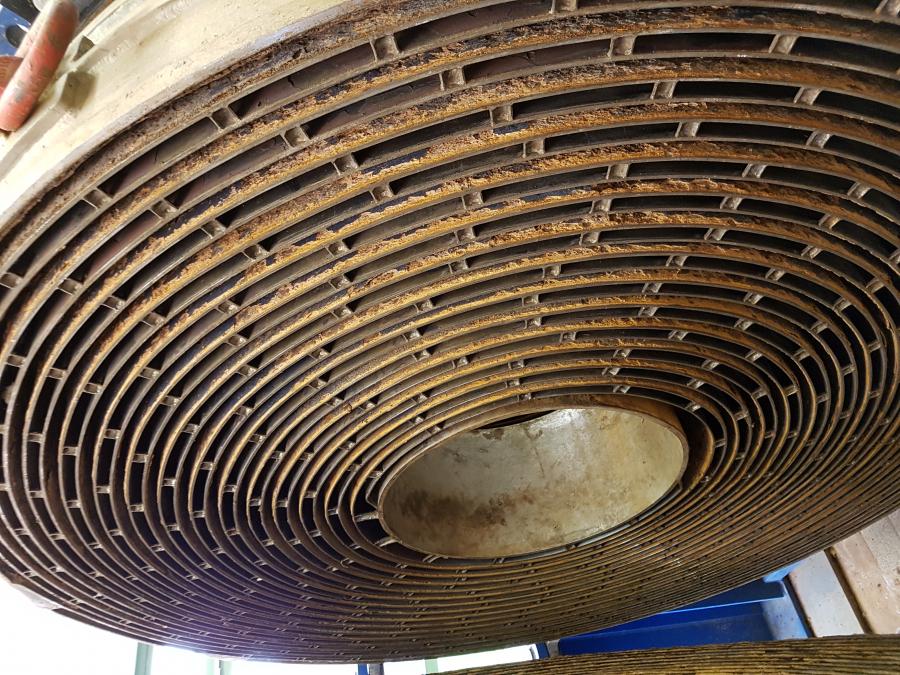

Material Edelstahl spiral bands
Connections 4x DN50 Entry / exit
Connections 2x DN25 emptying
Pressure 6 bar total
Temperature 90 °C
Dimensions total
Length 2250 mm
Width 600 mm
Height 2375 mm
Weight 6200 kg
Miscellaneous Austauscherfläche m²

thermical proceeding
