article no.: 29473

used chemistry supply system with tank , dosing cabinet

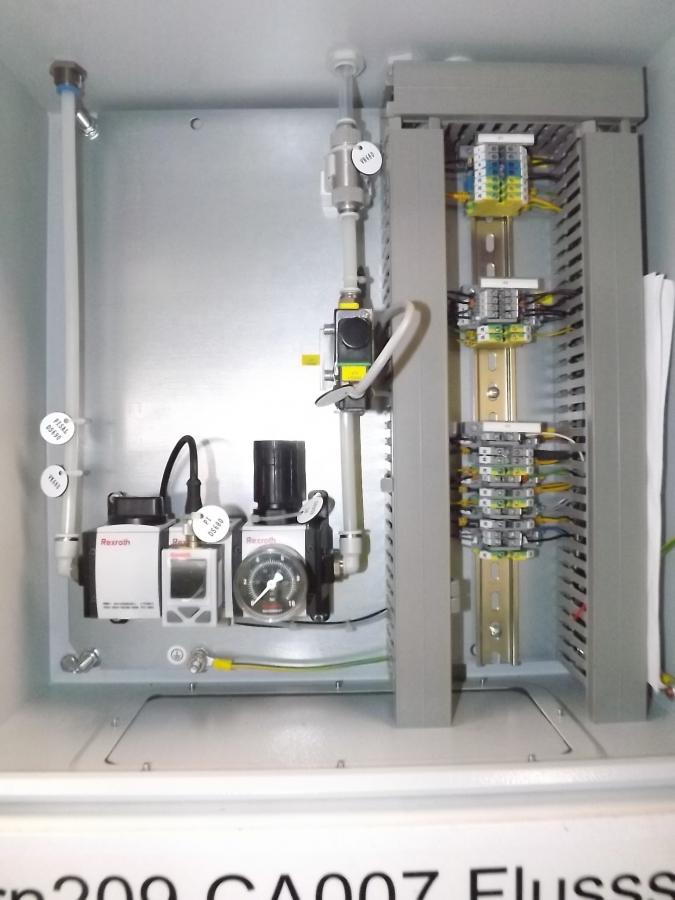

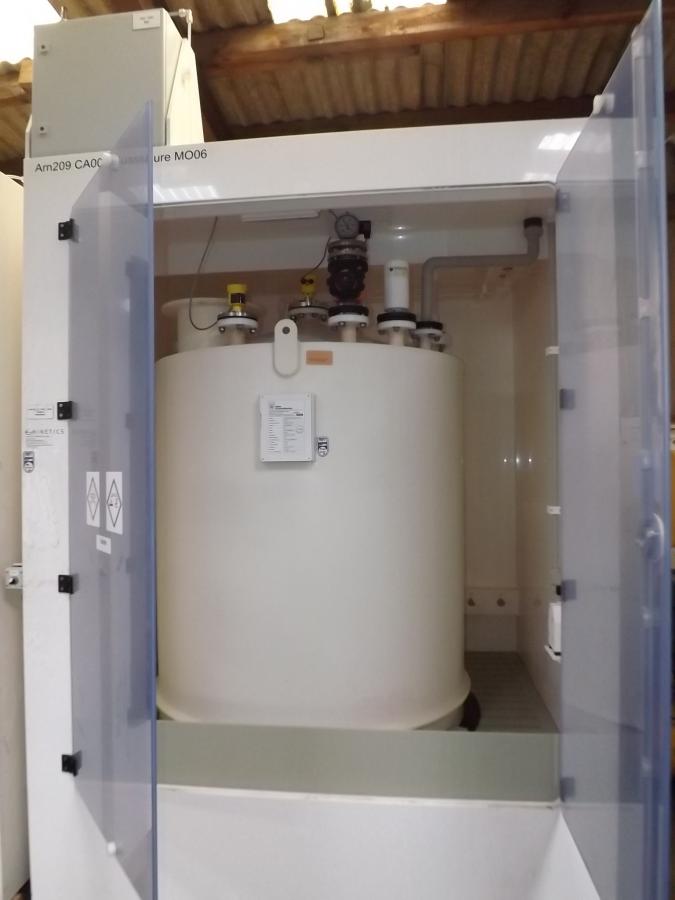

Clean room cabinet for storing or dosing dangerous liquid chemicals. The cabinet is completely closed with a fixed tank, cabinet exhaust air, supply air filter, E-Part Controlsection (compressed air unit) and a collecting pan with a compressed air membrane pump.
The system is of very high quality and can be used for many chemicals.

producer: Kinetics
type designation: HF
condition: used
Dimensions Length 2000 / width 2000 / height 34000mm total with assembly without stand
Weight 600 kg approx.

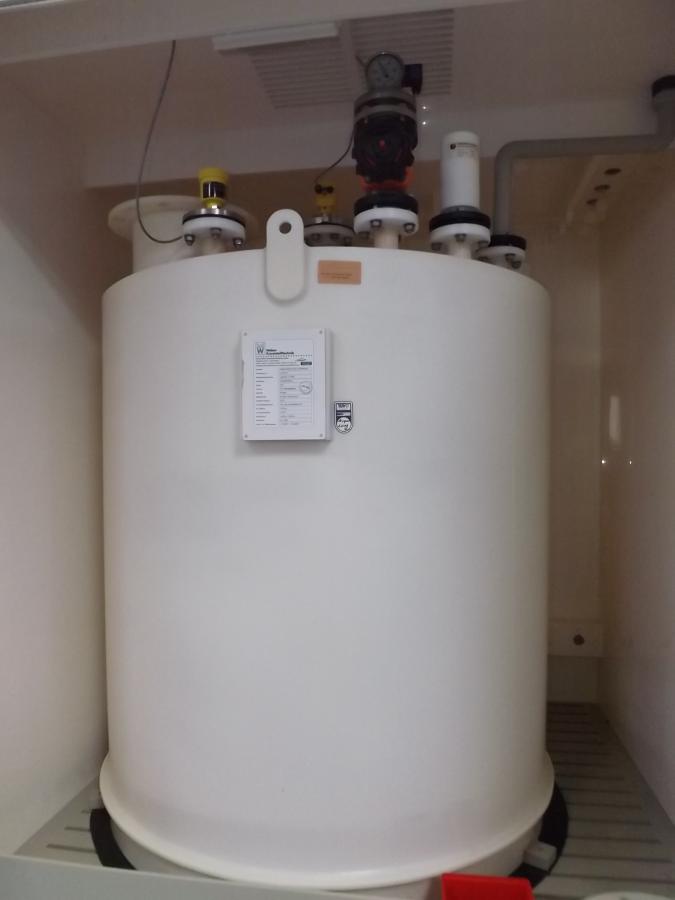

Description – Fixed tank / storage rod on PP frame
Material PE
Volume 2.0 m³ Usable volume
Temperature 30 / 40 °C max.operating temperature / when filling

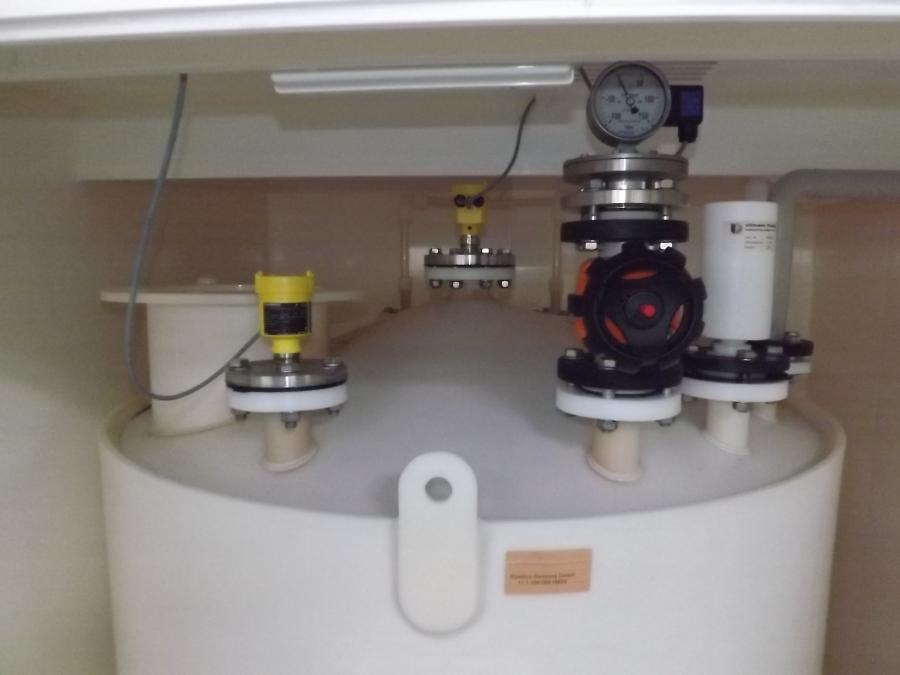

Connections – Overfill protection / level meter / filling and emptying / pressure monitoring with pressure display
Height 1450 mm Storage tank
Diameter 1440 mm

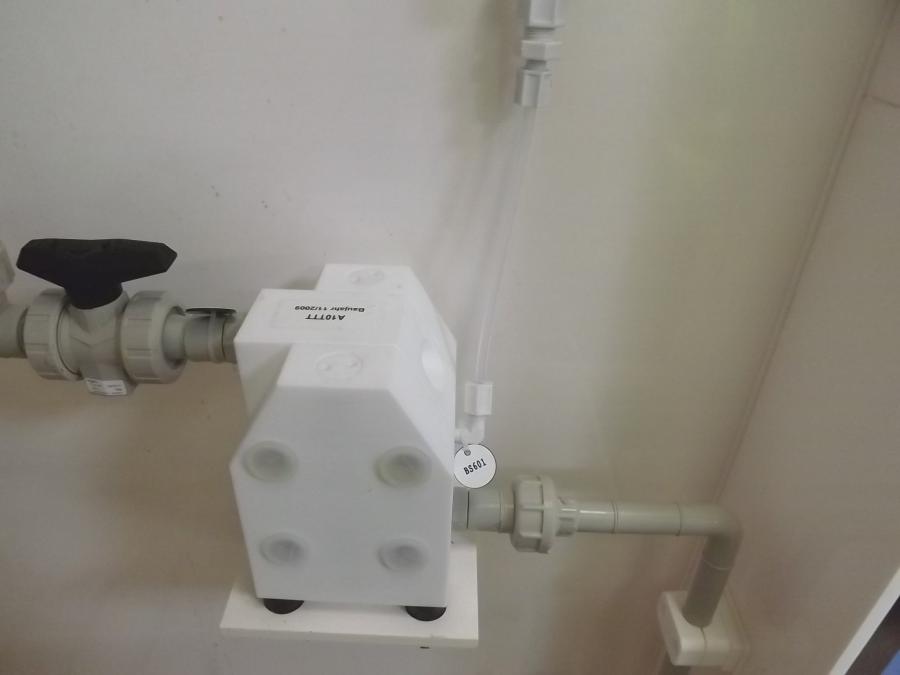

Accessories 1x compressed air diaphragm pump Almatec A10TTT
Accessories Drip pan installed
Further information doors made of PVC

storage of dangerous material
