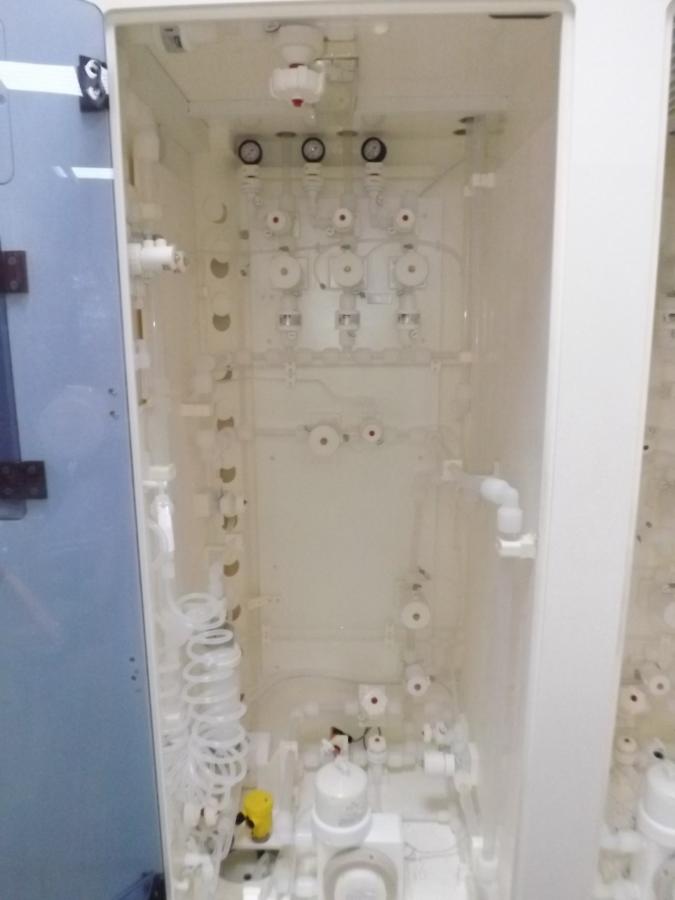

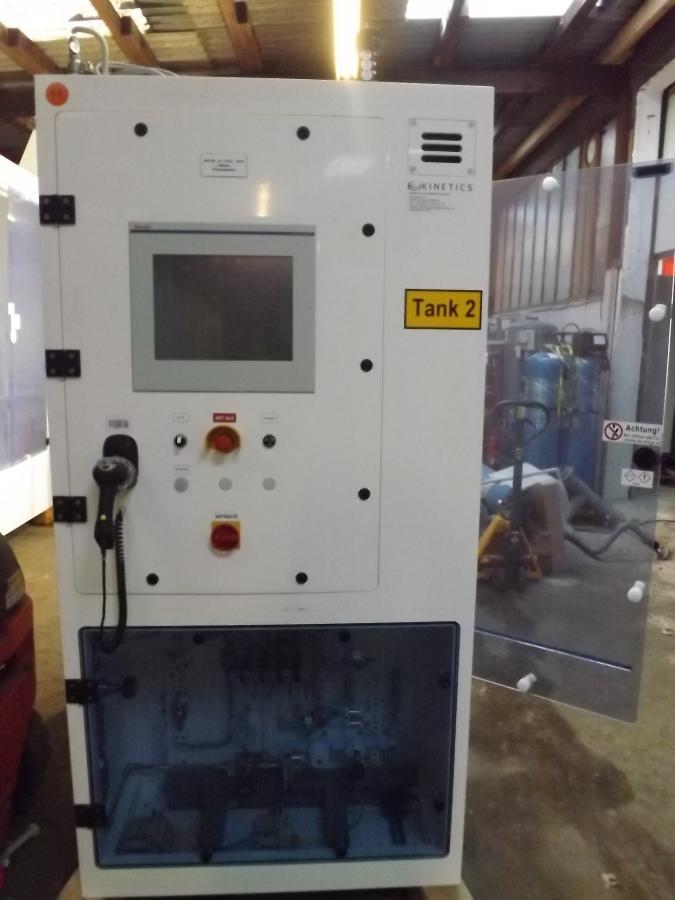

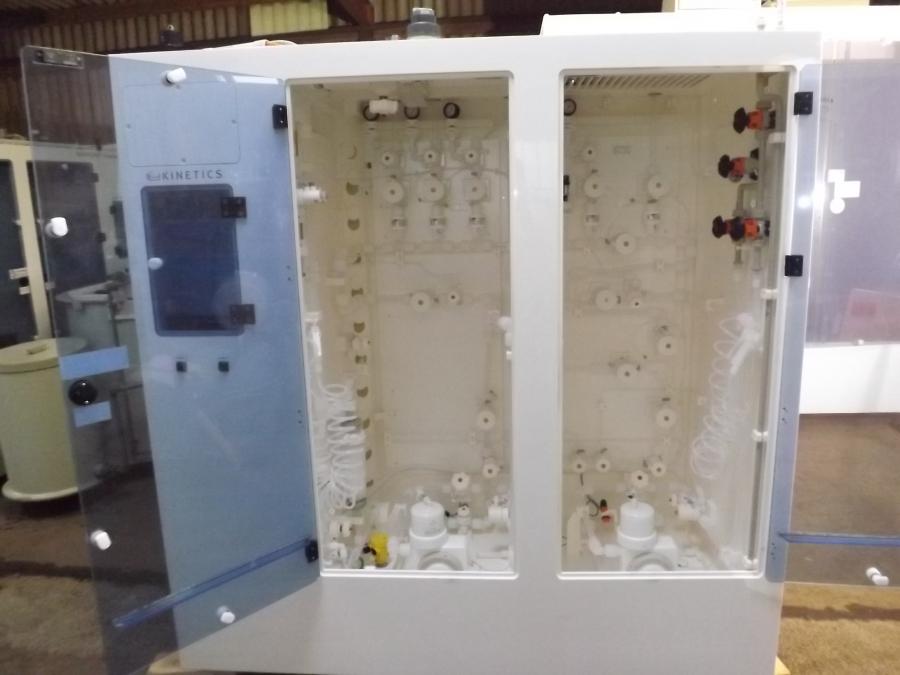

Dosing station / pumping station for dosing hazardous liquid chemicals. The cabinet is completely closed with cabinet exhaust air, supply air filter, compressed air unit. The dosing station was used to pump the chemical from the fixed tank or IBC into the distribution network.
The system is of very high quality and can be used for many chemicals.

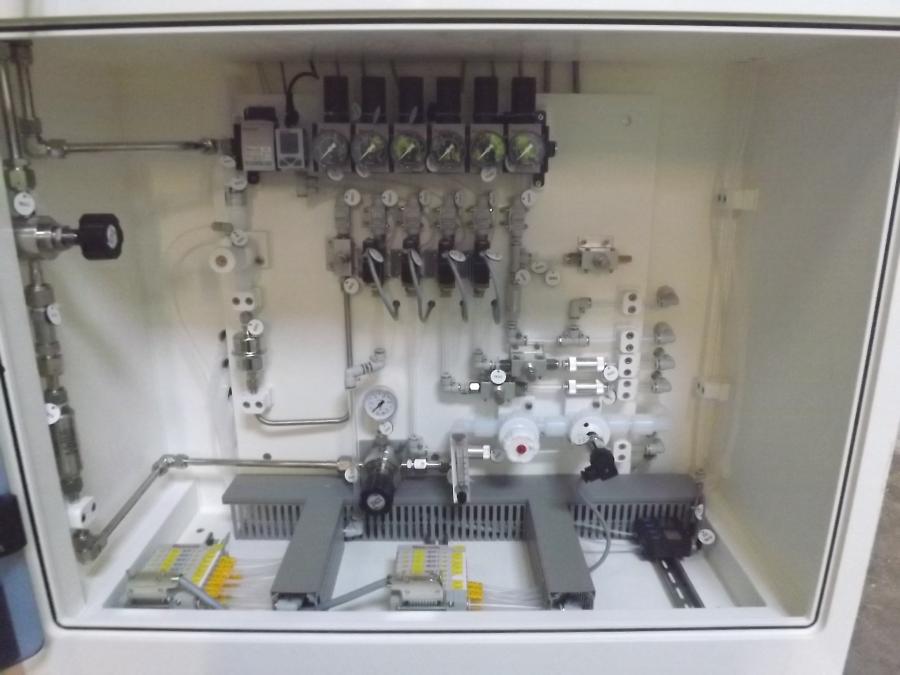

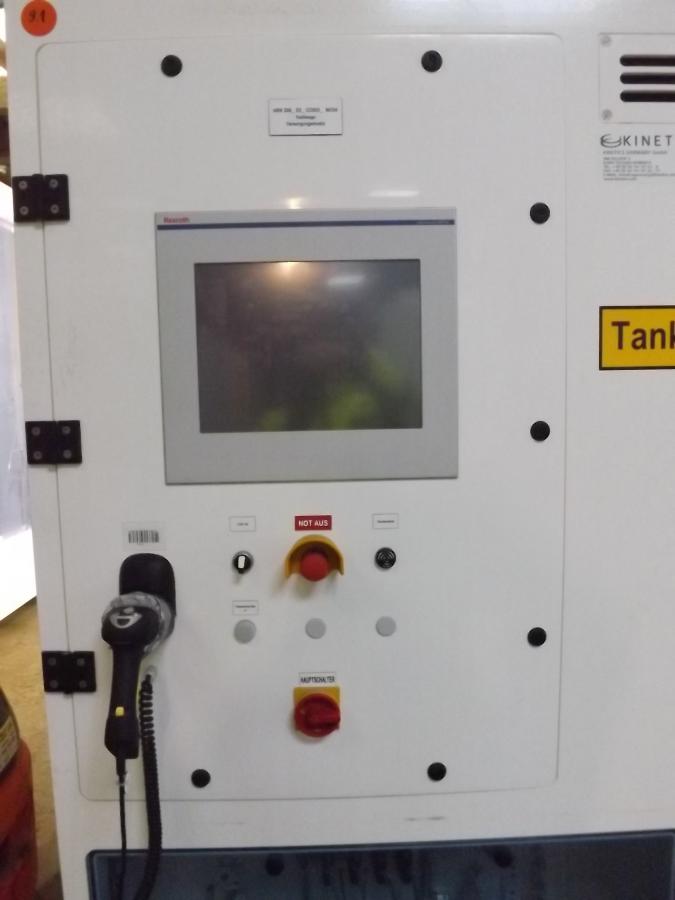

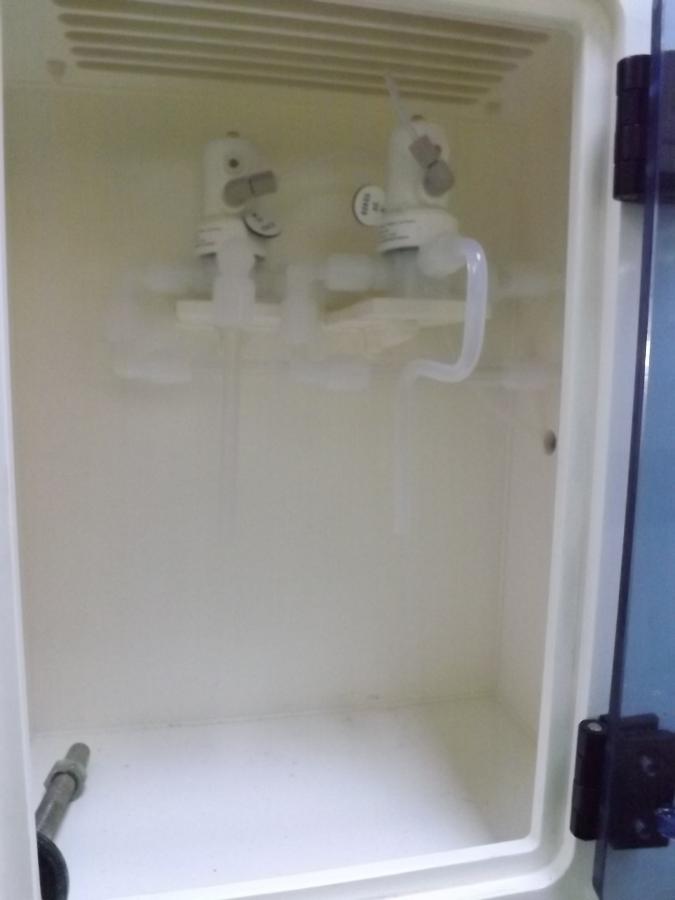

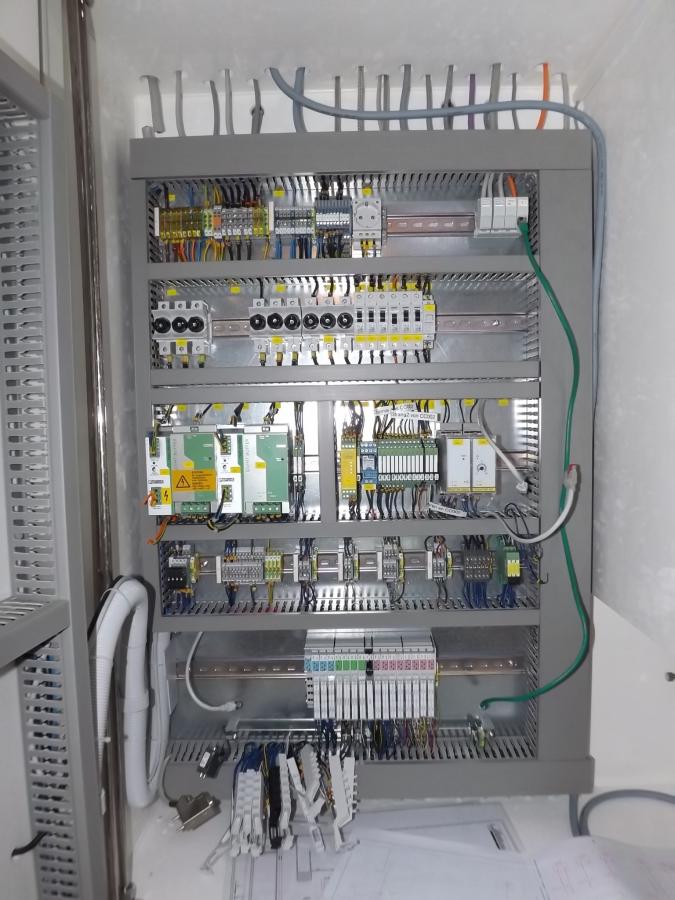

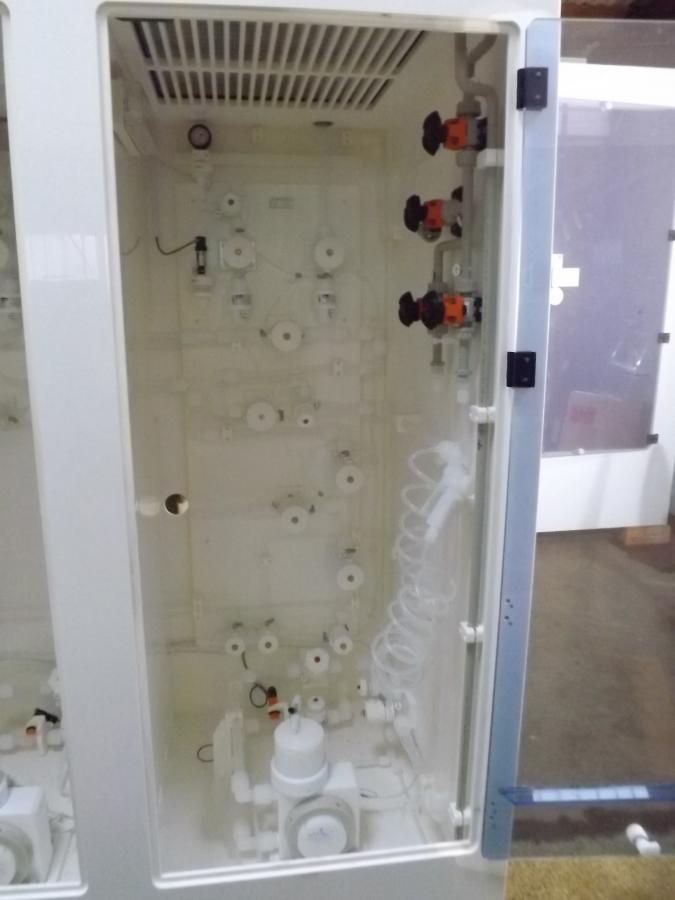

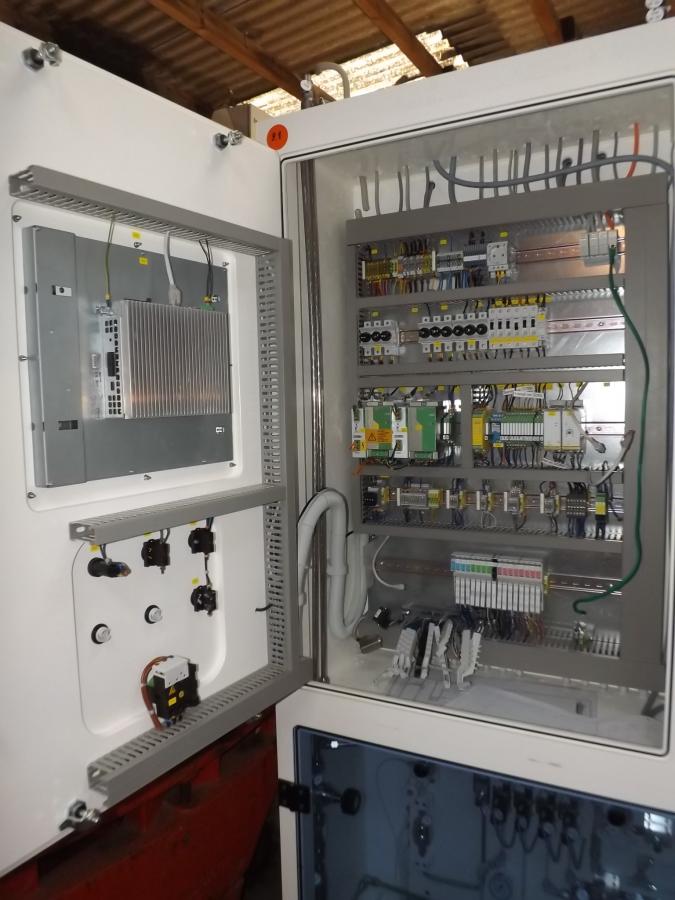

Valves, sampling box, flow regulator with pressure sensor, flushing by means of spray gun, compressed air unit, control cabinet with control panel (touch screen) and interface.

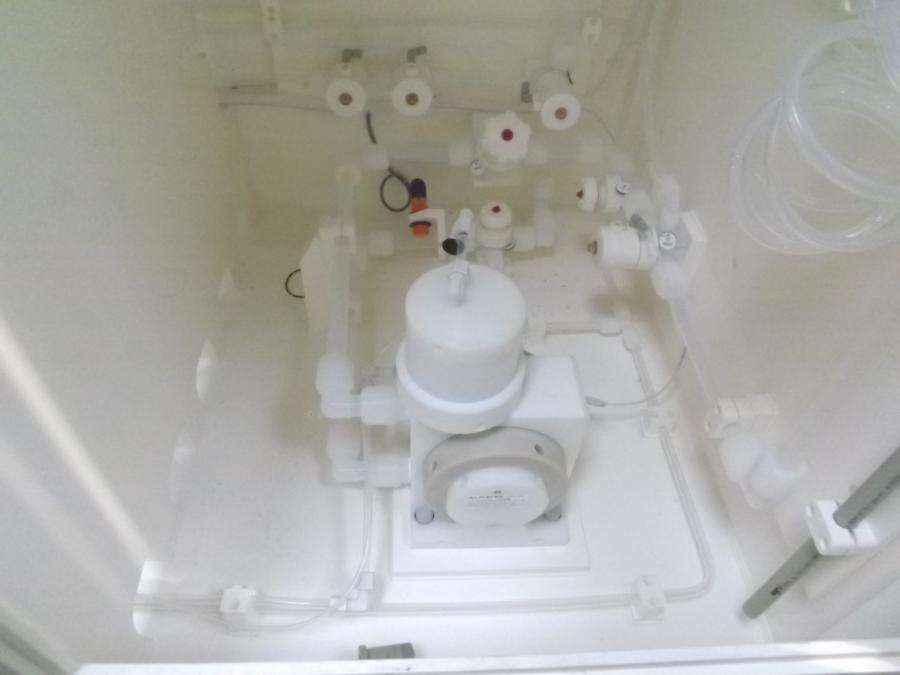

Pumps shown (2x Almatec Futur 50T air-operated diaphragm pumps / 1x Almatec A10TTT) are available separately)
Connections – Inlet and outlet connections for chemicals, exhaust air and supply air filters on the top
Description Almatec Futur 50T (optional) 2 x compressed air diaphragm pump
Delivery rate 3 m³/h max
Pressure 6 bar max.
Description Almatec A10TTT (optional) compressed air diaphragm pump
Delivery rate 1.4 m³/h max.
Pressure 7 bar max.
Further information doors made of PVC
Dimensions Length 2100 / width 1050 / height 2100mm total with assembly without stand
Weight 500 kg approx.
Further information – Cabinet emptying canceled (lower edge of cabinet)
storage of dangerous material
