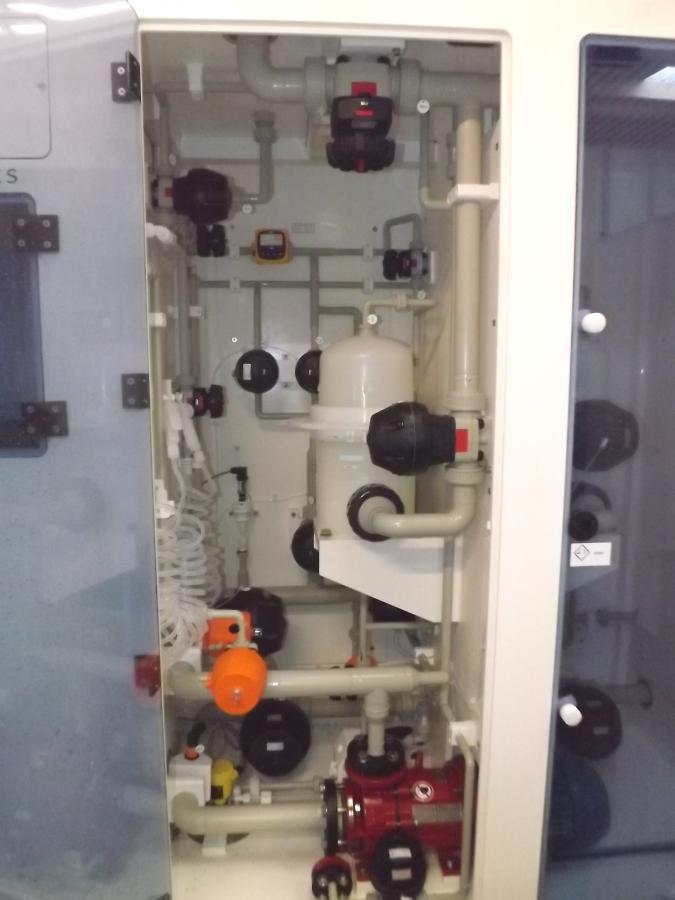

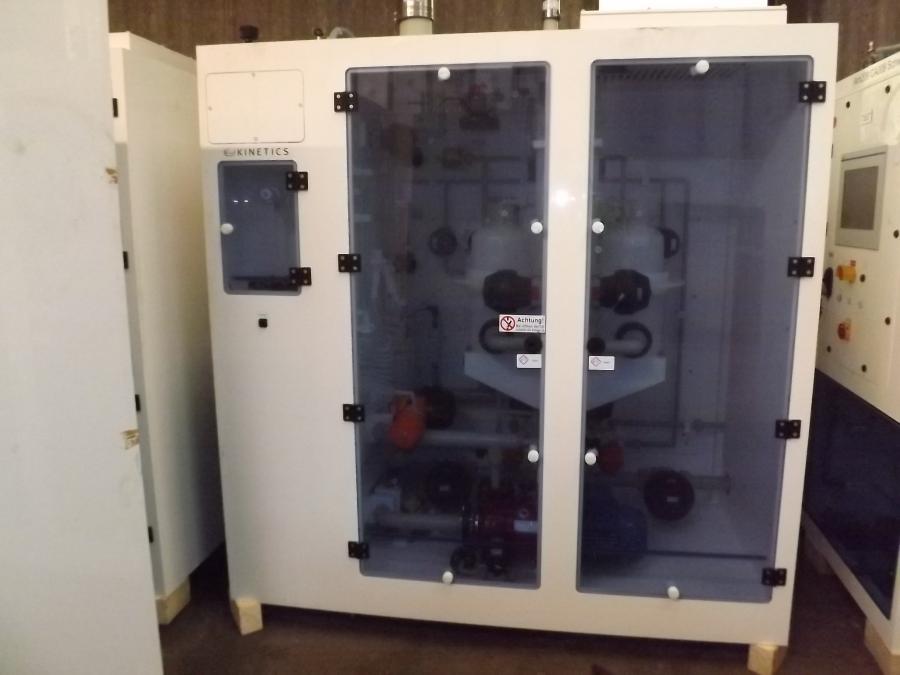

The cabinet (Hydrochloric acid tank modul) is completely closed with cabinet exhaust air, supply air filter, compressed air unit as well as a chemical centrifugal pump and compressed air diaphragm pump. With the unloading module, the delivered chemical was conveyed through the filter into a storage tank.
The system is of very high quality and can be used for many chemicals.

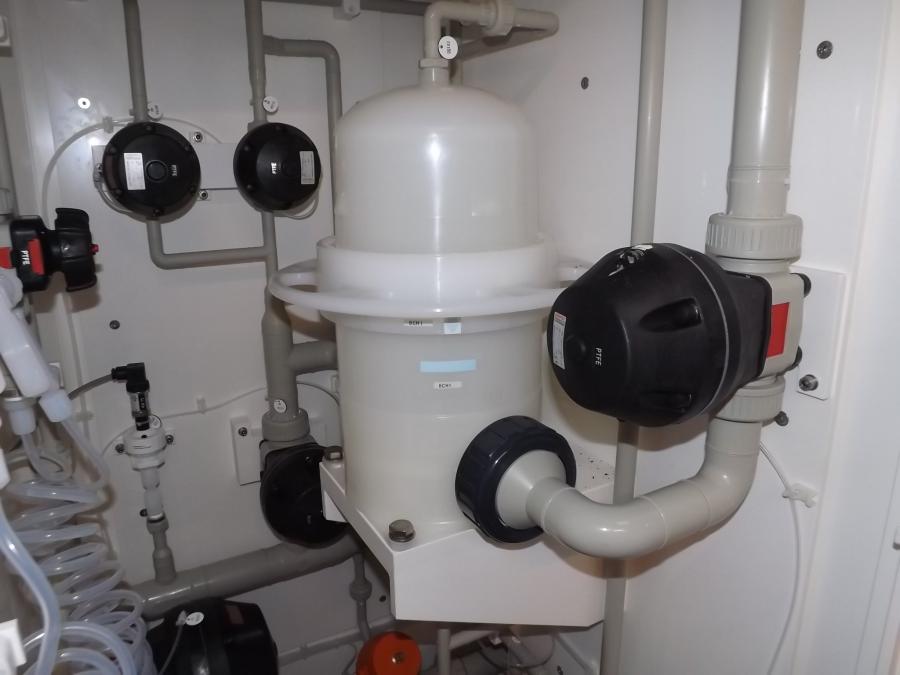

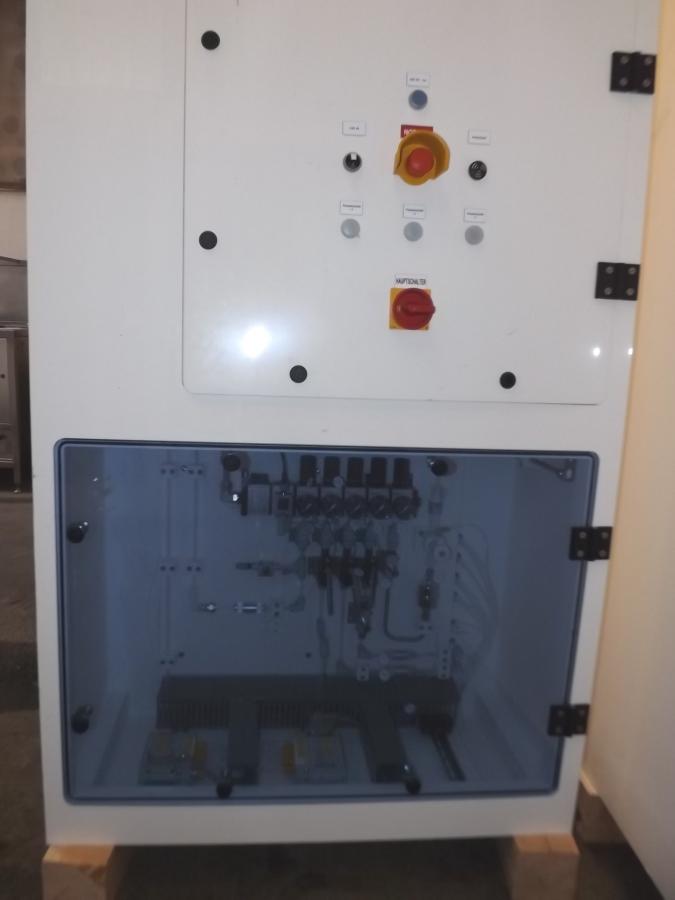

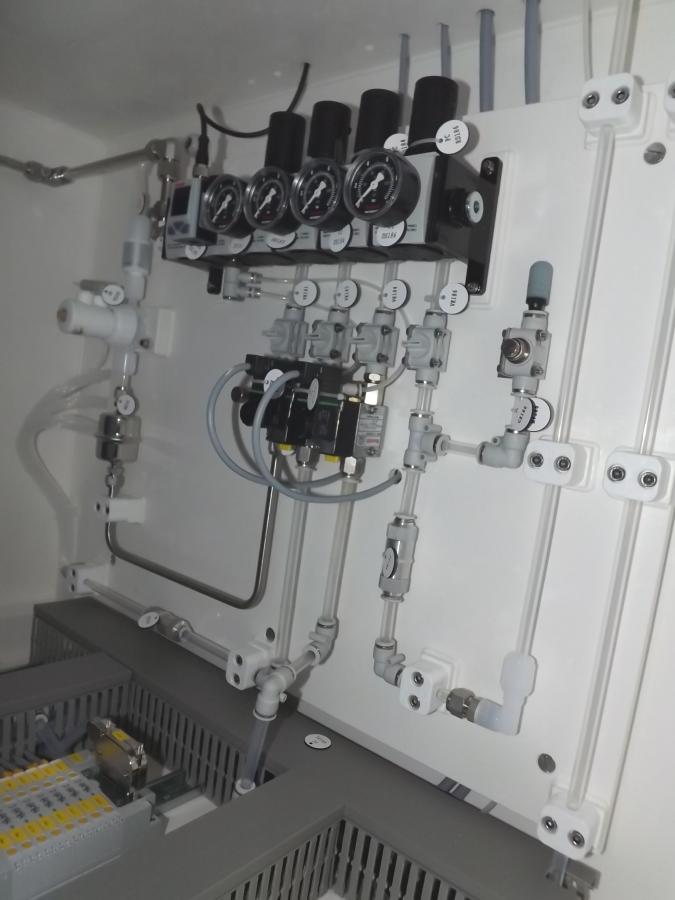

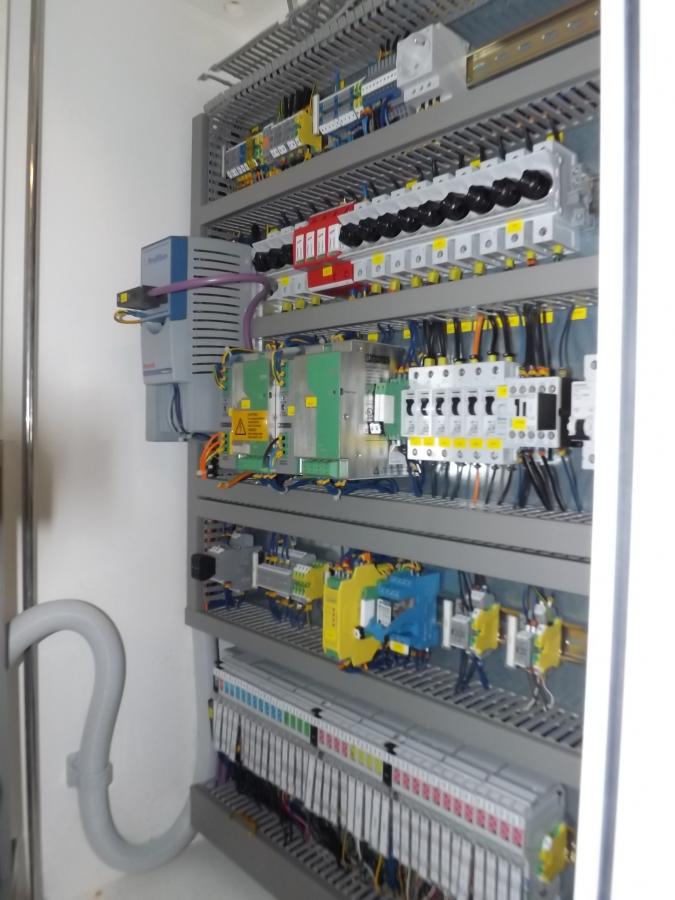

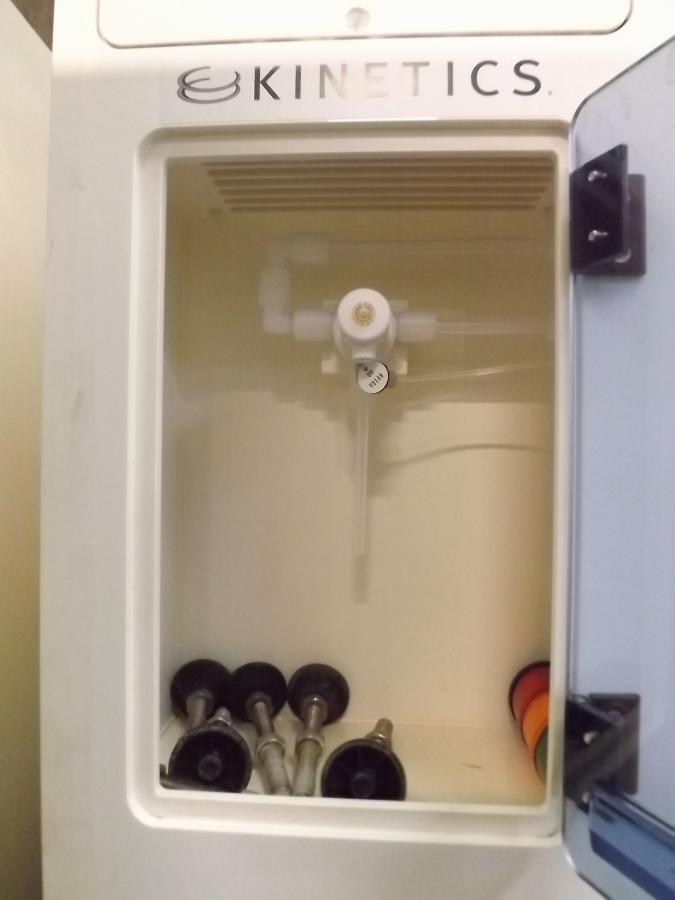

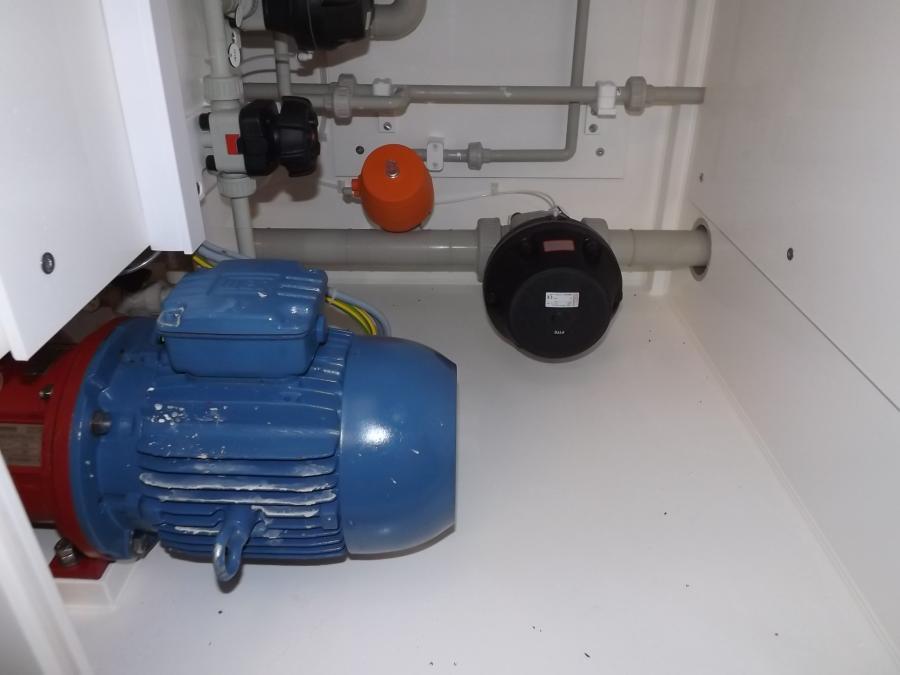

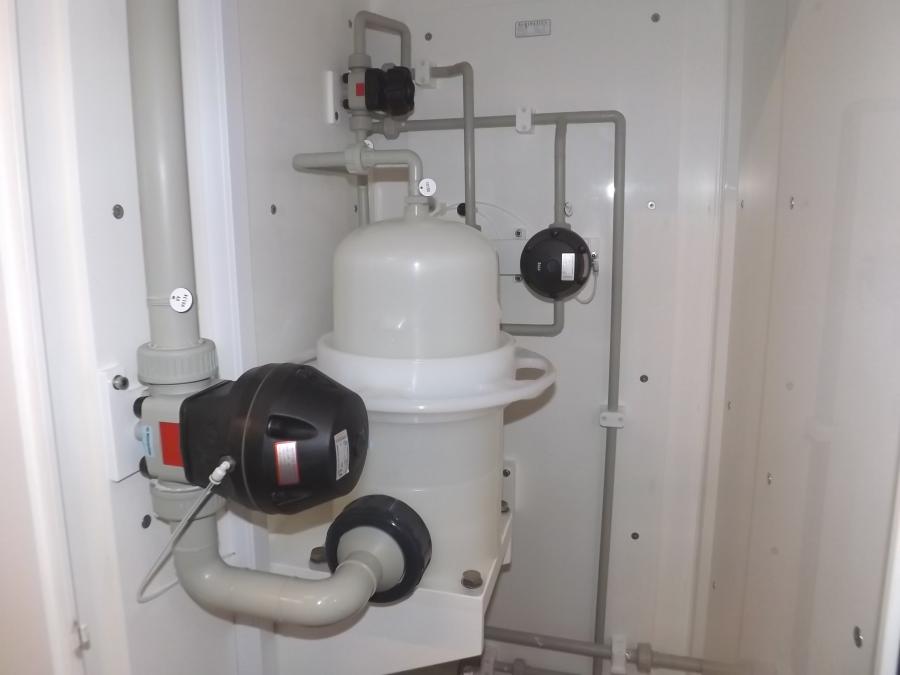

1x centrifugal pump (manufactured by Richter type MNK-B / F-P 50-32-125), 1x Almatec A10TTT, valve and filter units, sampling box, flow regulator with pressure sensor, flushing with a spray gun, compressed air unit and electrical cabinet
type designation: Richter Typ MNK-B/F-P 50-32-125, Almatec A10TTT

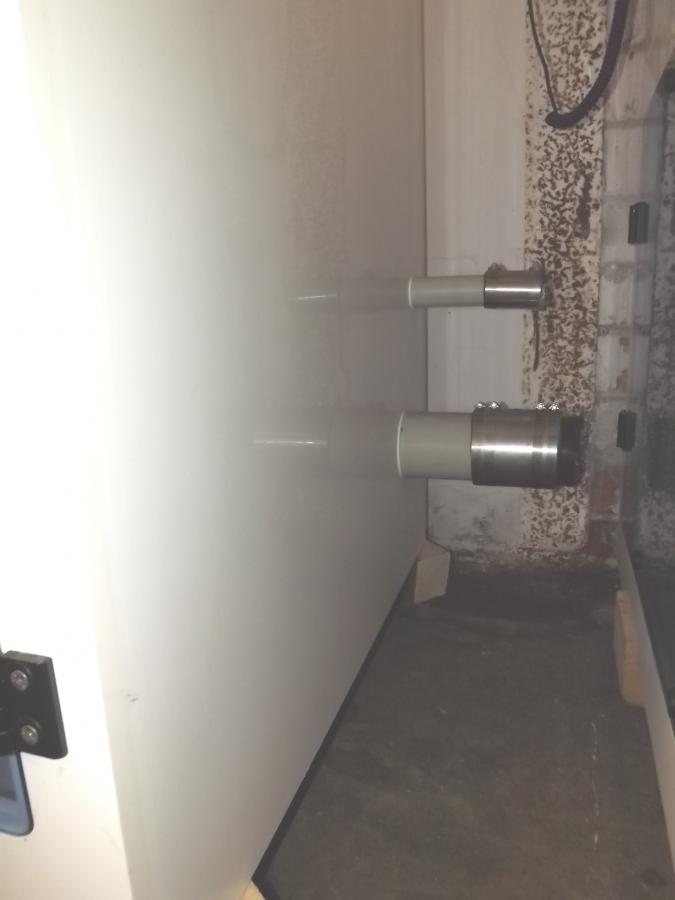

Connections – Chemical inlet on the side, exhaust air and supply air filter on the top

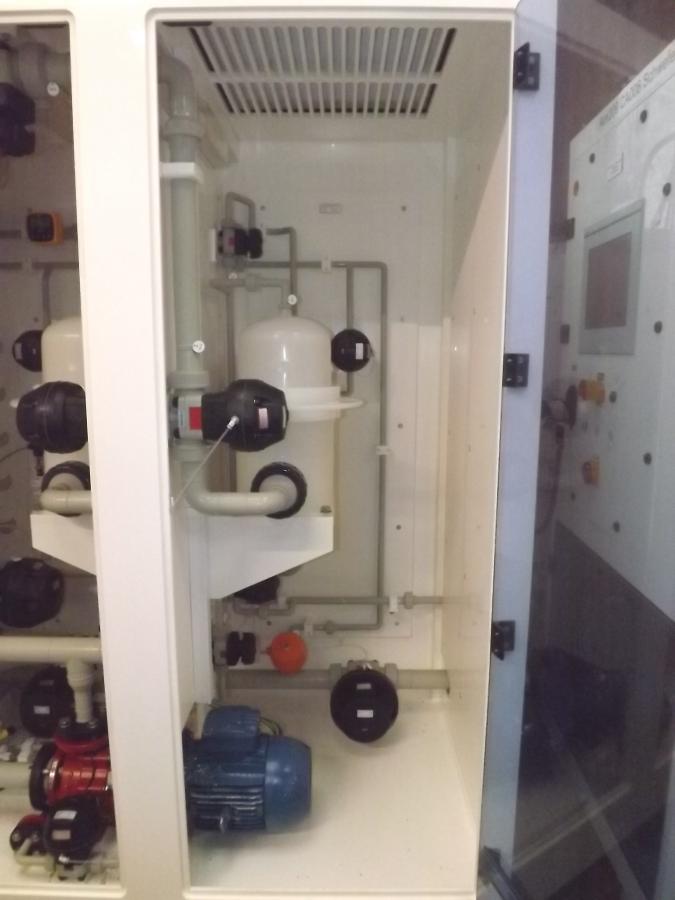

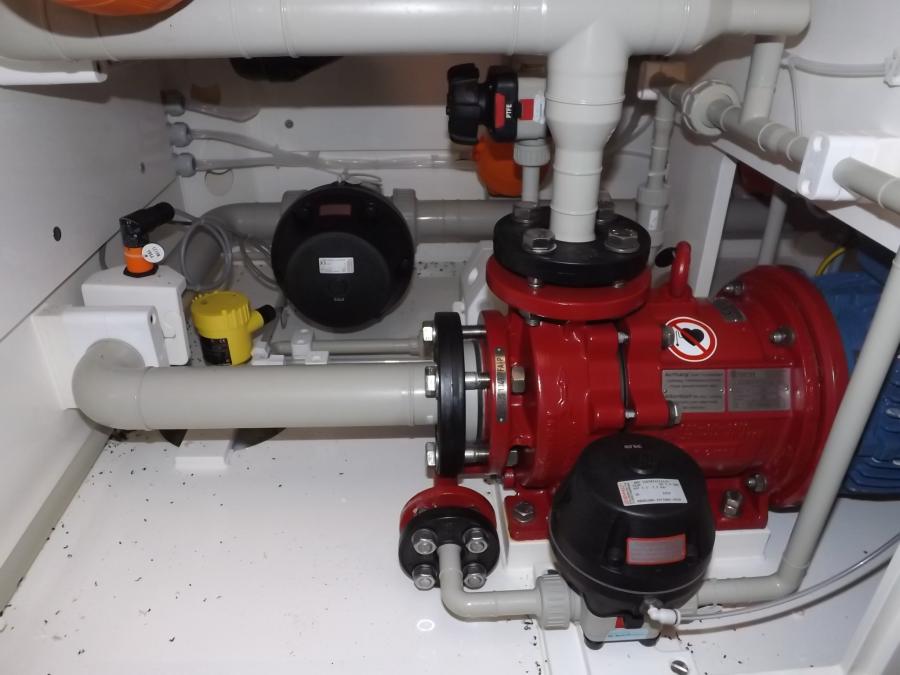

Description Richter MNK-B/F-P 50-32-125 Chemical centrifugal pump
Delivery rate 30 m³/h max.
Lifting height 30 m max.
Power 4 kW
Description Almatec A10TTT Pneumatic diaphragm pump
Delivery rate 1.4 m³/h max.
Pressure 6 bar max.
Further information doors made of PVC
Dimensions Length 2100 / width 1050 / height 2100mm total with assembly without stand
Weight 600 kg approx.
storage of dangerous material
