article no.: 29795

4 L ; 4 bar ; 118 kW unused titanium plate heat exchanger for marine use

SONDEX

Description

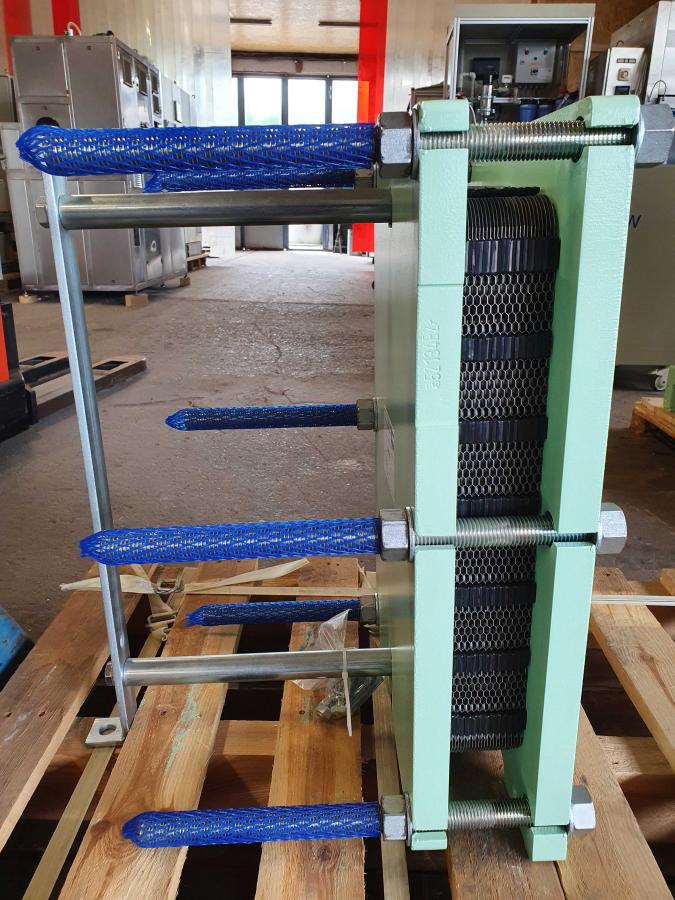

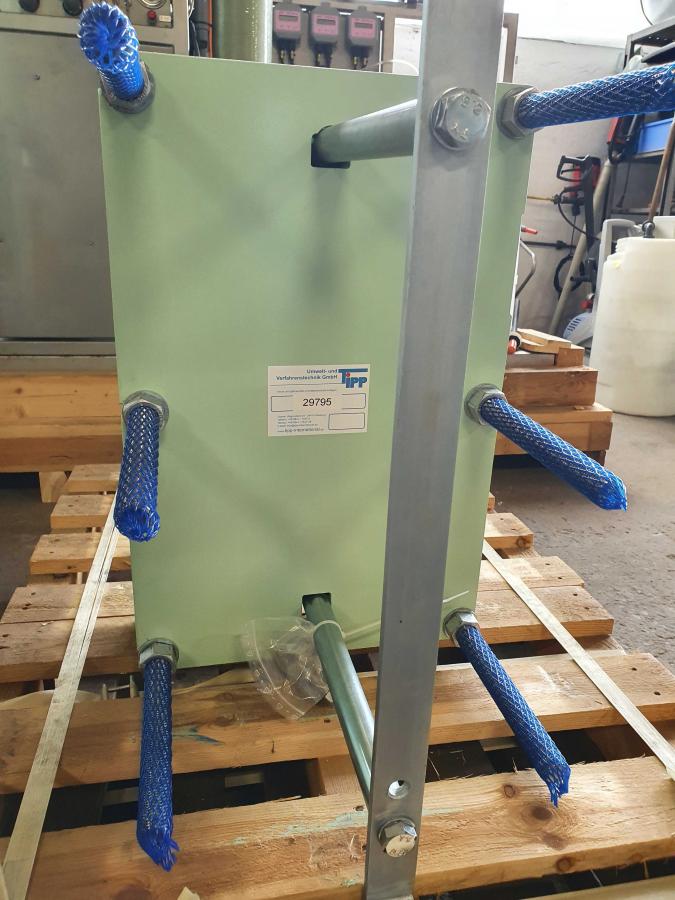

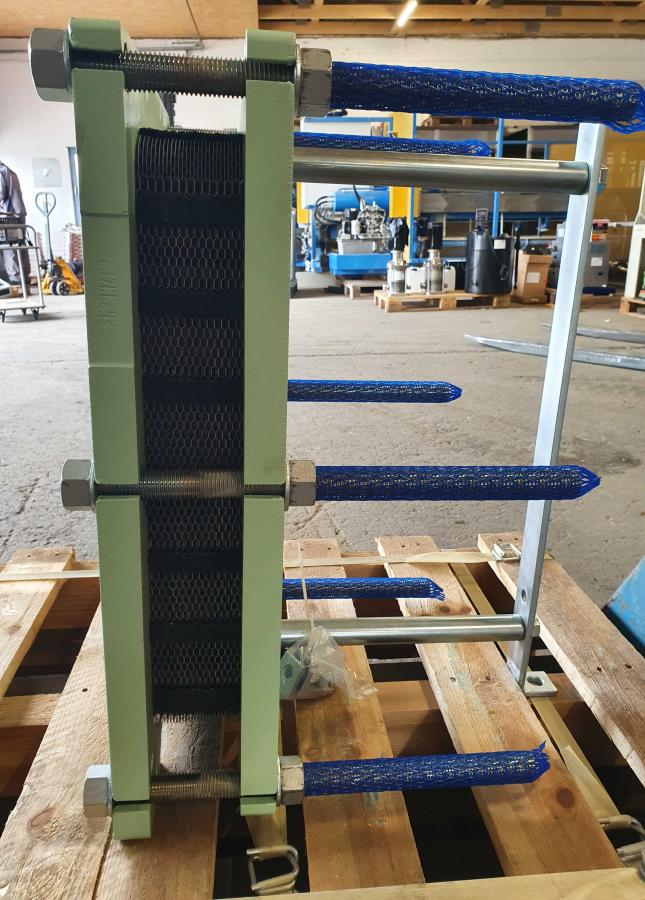

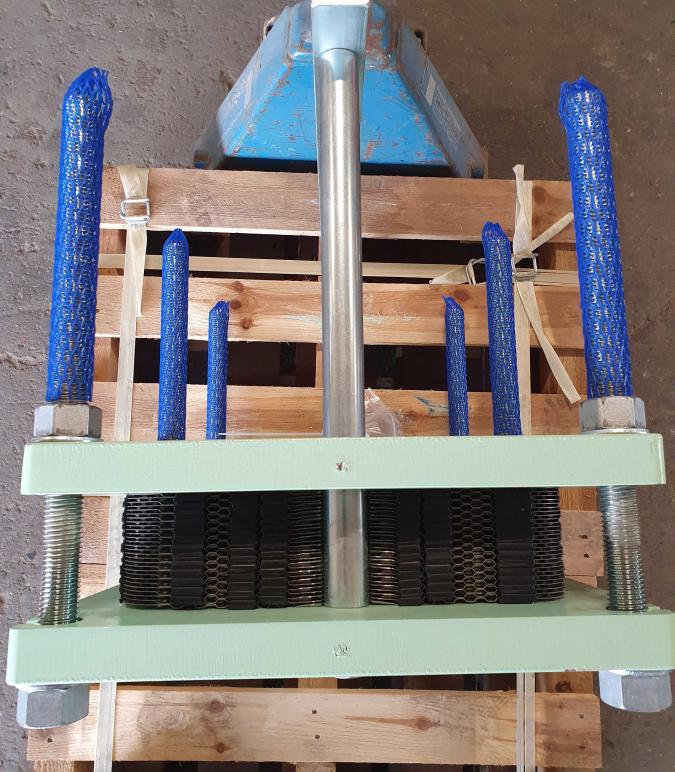

Plate heat exchanger with marine grade steel clamping device and titanium plate pack.

producer: SONDEX
type designation: S9A-IG16
condition: used

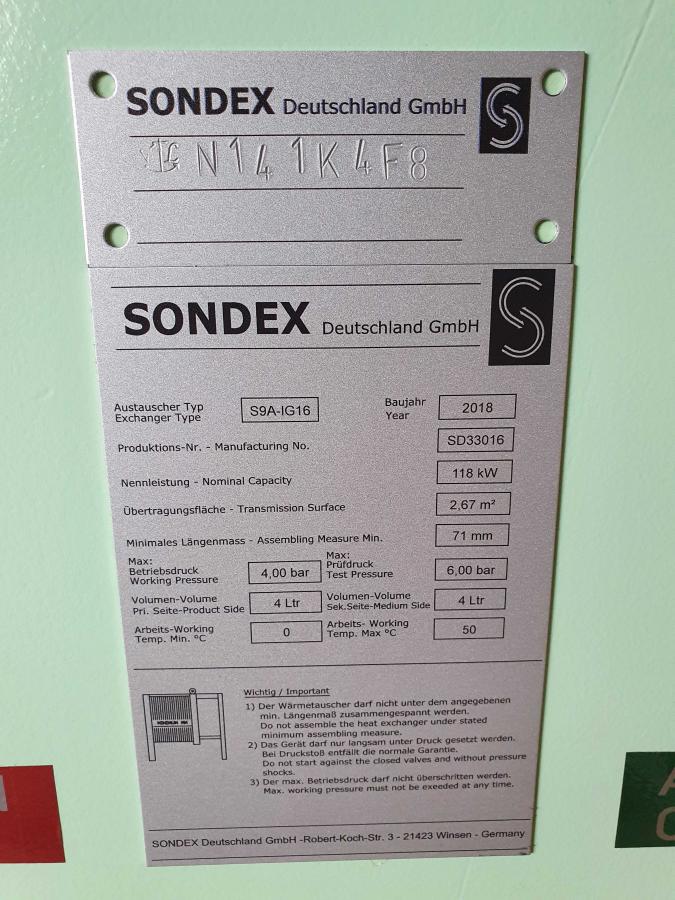

Serial number SD33016
Number of plates 28
Material Edelstahl Clamping device made of AISI 316
– titanium heat exchanger plates
Temperature 50 °C max. operating temperature
Content 4 l
Pressure 4 bar
Connections 4 x 2.5″ – DN 65 flange
Dimensions total
Width 395 mm
Depth 438 mm
Height 626 mm
Weight 157 kg

thermical proceeding
