article no.: 30093

1 L ; 10 bar ; 27 kW used plate heat exchanger / heat exchanger

SONDEX

Description

Description

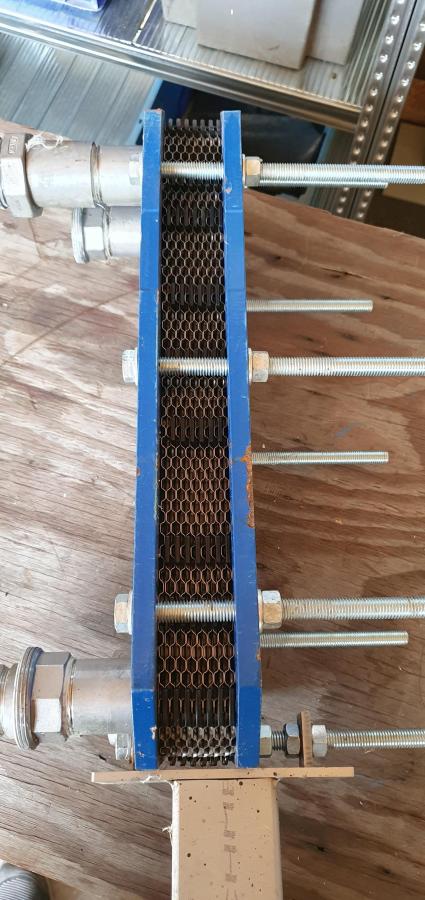

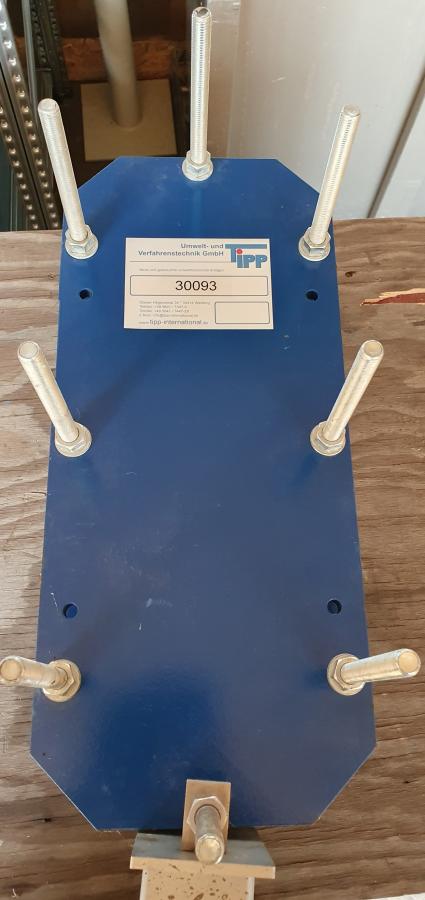

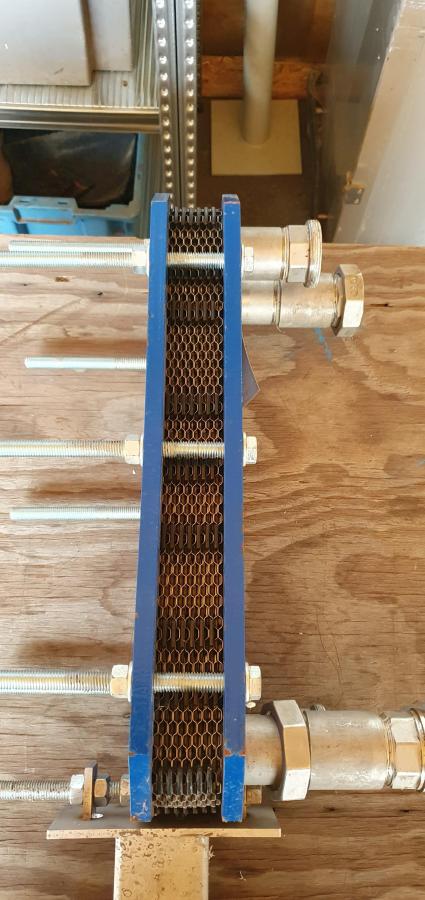

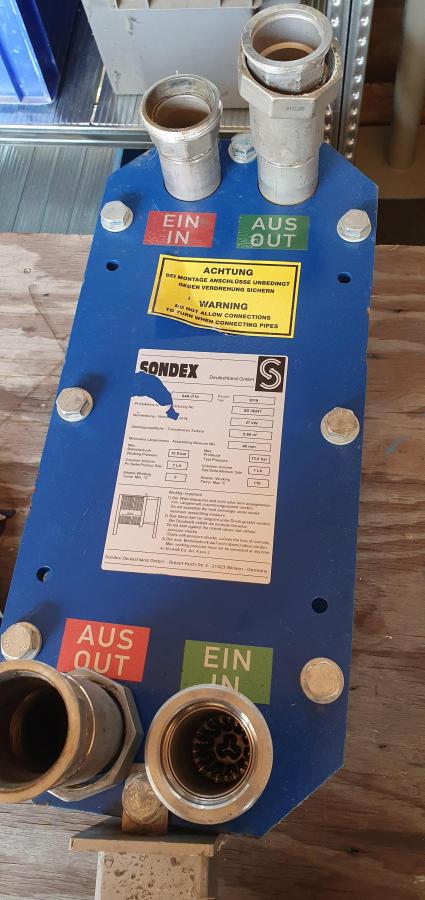

Plate heat exchanger with steel clamping device

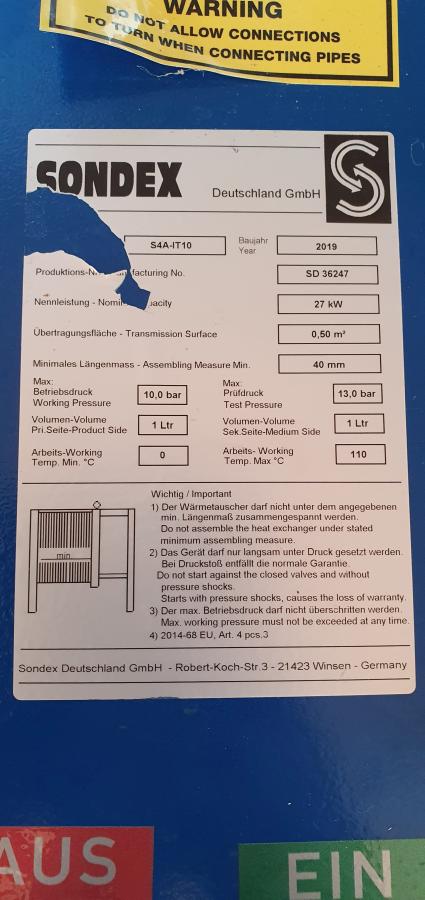

producer: SONDEX
type designation: S4A-IT10
condition: used
Serial number SD36247
Number of plates 14
Power 27 kW Rated power
Material Edelstahl Clamping device made of stainless steel
Temperature – 10 °C min. operating temperature
Temperature 180 °C max.operating temperature
Content 1 l
Pressure 10 bar max. operating pressure

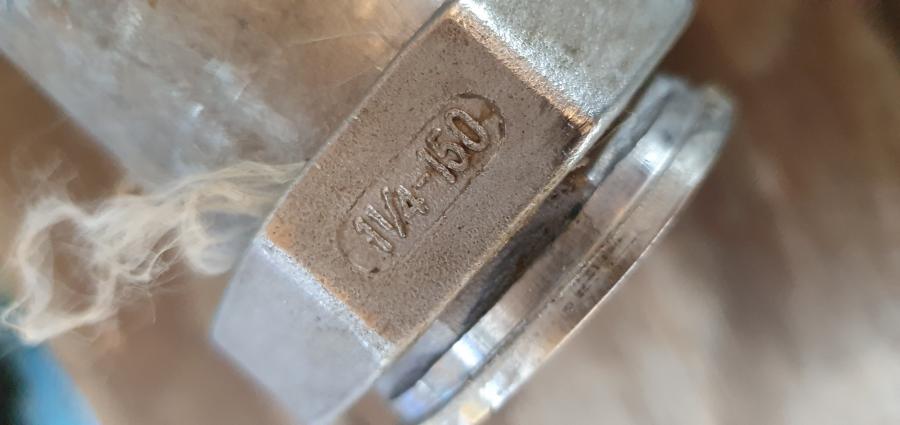

Connections 4 x 1 1/4 Zoll x 150 mm flange
Width 200 mm
Depth 240 mm
Height 600 mm with rack
Weight 25 kg
Further information 0,50 m² Transmission area

thermical proceeding
